Product Details:
|
| Use In: | UV Curing Machine | Package Size: | 3.5mm*3.5mm |
|---|---|---|---|
| Peak Wavelength: | 390nm~400nm | Chip: | Vertical Chip |
| Dimension: | 3.70mm*3.70mm*2.50mm | Lifespan Hours: | >20000 Hours |
| LED Packaging: | CMH Full Inorganic | Module Customize: | Yes |
| High Light: | Flexo SMD UV LED,400nm SMD UV LED,Curing SMD UV LED |
||

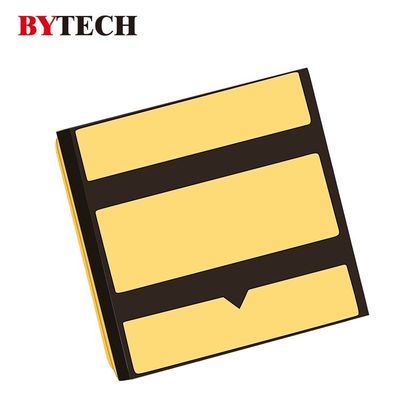

Uv Led 395nm Water Cooling UV LED Curing Machine 395nm SMD UV LED For Flexo
Company Profile:
Bytech is the first company in China to launch full inorganic package UV LED which is based on CMH(Ceramic,Metal,hard glass) technology platfrom. We can provide CMH series (high reliability) and U/ D series (high cost performance) products, including UVA/UVB/UVC/VCSEL. It covers curing, printing, (money) authentication, medical, disinfection/ sterilization and security industry.
Characteristics of UV LED
1. Electrical / Optical Characteristics (Ta=25℃,RH=40%)
| Parameter | Symbol | Units |
CMH235A1V107Z1V2 (IF=1000mA) |
| Peak Wavelength | λp | nm | 390-400 |
| Radiant Flux | Φe | mW | 1400-2000 |
| Forward Voltage | VF | V | 3.4-4.0 |
| Thermal Resistance | Rth | °C/W | 5.0 |
| Spectrum Half Width | Δλ | nm | 13 |
| View Angle | 2θ1/2 | deg | 60 |
2. Absolute Maximum Ratings (Ta=25°C,RH=40%)
| Parameter | Symbol | Units | CMH235A1V107Z1V2 |
| DC Forward Current | IFmax | mA | 1200 |
| Maximum Rating Junction Temperature | Tjmax | °C | 125 |
| Operating Temperature Range | Topr | °C | -10 ~ +65 |
| Storage Temperature Range | Tstg | °C | -40 ~ +85 |
Production Line:
Packaging:
Quality Control
In order to continuously enhance the quality of management and meet customers’ needs, we have passed through the ISO9001 quality management system certification.
fixtures modern is produced through standard procedures conducted by trained staffs.
100% of the LED fixtures will be tested and keep lighting for 24 hours to test its quality reliability, and we will also test its temperature after 24 hours lighting.
Then after it is cool we again test 100% of the lamps to see if it still work well. Each led Cabinet light should pass all these QC procedures before the packing.
