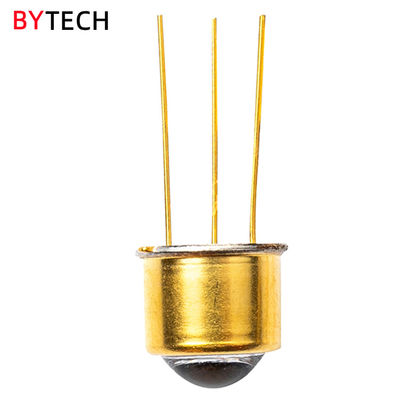

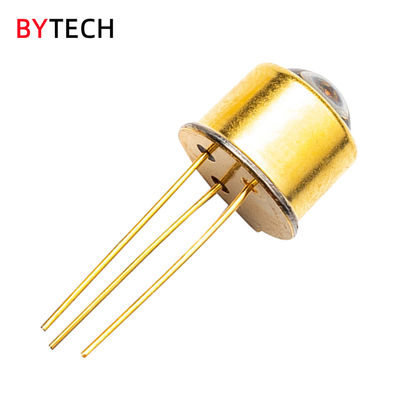

TO39 Disinfection LED

TO39 Disinfection LED
TO39 Disinfection LED TO39 Disinfection LED TO39 Disinfection LED TO39 Disinfection LED

Large Image :  TO39 Disinfection LED

Product Details:
Place of Origin: Guangzhou, China
Brand Name: Bytech
Certification: ISO9001, RoHS
Model Number: TO39-0C2F79Z30
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Anti-electrostatic packaging
Delivery Time: 2-7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 20000000 pcs per month

TO39 Disinfection LED

Dimension: Φ9.22×22.40mm Application: Disinfection, Purification
Peak Wavelength: 270-280nm Forward Voltage: 5-9V
Radiant Flux: 2-4mW Radiation Angle: 15 Degree
Package Technology: TO39
High Light:

TO39 Disinfection LED


280nm Disinfection LED


4mW Disinfection LED

BYTECH TO39 254nm 255nm 260nm 275nm UVC LEDS For disinfection 280nm uv led



Company Introduction:


BYTECH Electronics CO., Ltd, Chinese national high and new tech enterprise.

It is the first company in China to produce and sale the full inorganic UV LEDs, and to provide application solutions for customer.

CMH packaging technology platform is a kind of packaging technology which adopts ceramic, metal, hard glass as packaging materials, and it is independent intellectual property owned by BYTECH.

By now, BYTECH can provide CMH series (high reliability) and U/ D series (high cost performance) products.

It covers curing, printing, (money) authentication, medical, disinfection/ sterilization and security industry.



Characteristics of TO39-0C2F79Z30


# Electrical / Optical Characteristics (Ta=25℃, RH=40%)


Parameter Symbol Units


(Continuous current


(Intermittent current


Peak Wavelength λp nm 270~280 270~280
Radiant Flux Φe mW 1~3 2~4
Forward Voltage VF V 5~9 5.5~9
Thermal Resistance Rth °C/W ≦20 ≦20
Spectrum Half Width Δλ nm 10.2 10.3
View Angle 2θ1/2 deg 15 15


# Absolute Maximum Ratings (Ta=25°C, RH=40%)


Parameter Symbol Units Value
Maximum Rating Forward Current IFmax mA 60
Maximum Rating Junction Temperature Tjmax °C 90
Operating Temperature Range Topr °C -40 ~ +60
Storage Temperature Range Tstg °C -40 ~ +85


Features for TO39 LED:


● UVC LED with quartz glass lens;

● Dimension: Φ9.22×22.40mm;

● Long operating life;

● High reliability;

● Superior ESD protection;

● RoHS compliant.

Package Dimensions (Unit: mm)

TO39 Disinfection LED 0



Production Line:


TO39 Disinfection LED 1





TO39 Disinfection LED 2





Q1: Are you a factory or dealer?

A1: We are a real and professional manufacturer in UV LED.


Q2: What products do you main business?

A2: We are Specialized in full inorganic package UV LED and UV LED module.


Q3: How about your quality?
A3: Use top quality material to make sure stable quality. Every product passed aging test well then delivery to every client.


Q4: Can you offer customized design and manufacturing?

A4: Yes, we offer customized design and manufacturing. We offer free-of-charge PCB design and electrical and optical test. All our LED modules are customized designs for customers from all over the world.
