Product Details:
|
| View Angle: | 120 Degree | Module Size: | 12.65*12.65mm |
|---|---|---|---|
| Peak Wavelength: | 400-410nm | Power: | 28W-56w |
| Voltage: | 20-23V | Operating Temperature Range: | -40 To +60 |
| Storage Temperature Range: | -40 To +85 | Application: | 3D Printing |
| High Light: | 405nm UV LED Modules,3D printing UV LED Modules,23V UV LED Modules |
||

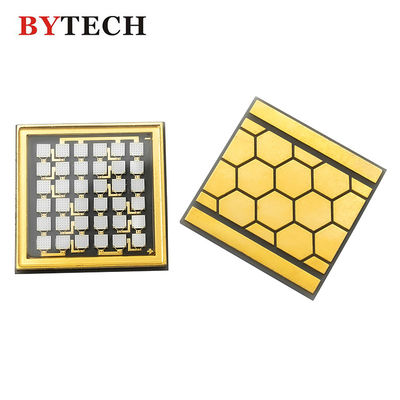

BYTECH CNG1313 series 405nm UV LED modules for LCD 3D printing light source
Company Introduction:
Bytech is the first company in China to launch full inorganic package UV LED which is based on CMH(Ceramic,Metal,hard glass) technology platfrom. And we has applied for 15 patents since 2013 inculding 13 authorized patents. At present, We can provide CMH series (high reliability) and U/ D series (high cost performance) products. It covers curing, printing, (money) authentication, medical, disinfection/ sterilization and security industry
Characteristics of CV060501A0V128Z1-S6P6
1, Electrical / Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units | Value |
| Peak Wavelength | λp | nm | 400-410 |
| Radiant Flux | Φe | mW | 28000~56000 |
| Forward Voltage | VF | V | 20~23 |
| View Angle | 2θ1/2 | deg | 120 |
2, Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units | Value |
| DC Forward Current | IFmax | mA | 4200 |
| Maximum Rating Junction Temperature | Tjmax | °C | 80 |
| Operating Temperature Range | Topr | °C | -40 ~ +60 |
| Storage Temperature Range | Tstg | °C | -40 ~ +85 |
Package Dimensions & Circuit
(Unit: mm)
Production Line
Why You Choose Bytech
1, Partners in the Workplace, A list of outstanding organizations we have teamed with to help building a successful quality controlling program.
2, Our UV LED are sold to reseller professionals in over 50 countries worldwide for years.
3, All of our UV LED made fresh within one month of your order, and has a two year warranty.
4, UV LED in the China in accordance to strict industry regulations.
5, All UV LED are subject to continuous laboratory quality testing.
6, We offer top quality light fixtures for prices well below the market standard.
