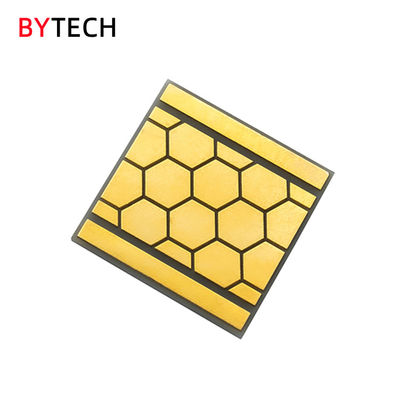

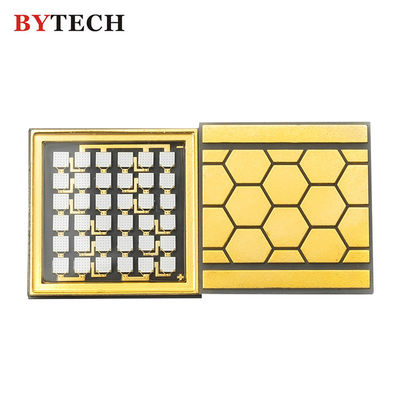

405nm COB LED Module

China Bytech Electronics Co., Ltd. certification
China Bytech Electronics Co., Ltd. certification
I'm Online Chat Now

405nm COB LED Module

405nm COB LED Module
405nm COB LED Module 405nm COB LED Module 405nm COB LED Module 405nm COB LED Module

Large Image :  405nm COB LED Module

Product Details:
Place of Origin: China
Brand Name: Bytech
Certification: ISO9001, RoHS
Model Number: CV060501A0V128Z1-S6P6
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Anti-electrostatic packaging
Delivery Time: 2-7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 20000000 pcs per month

405nm COB LED Module

Radiation Angle: 120° LED Series: 2525, 3535, 4545, 6868
Peak Wavelength: 400-410nm Power: 28W-56w
Current: 4200mA Operating Temperature Range: -40 ~ +60℃
Storage Temperature Range: -40 ~ +85℃ Application: 3D Printer
High Light:

405nm COB LED Module


4200mA COB LED Module


56w COB LED Module

BYTECH CNG1313 405nm COB LED module for 3D printer 365nm 385nm 395nm uv led



Company Introduction:


Bytech is the first company in China to launch full inorganic package UV LED, and CMH (Ceramic,Metal,hard glass) technology is a independent intellectual property owned by BYTECH.

At present,Our UV LED product cover wavelengths of UVA, UVB and UVC, which has been applied for offset printing, screen printing, ink-jet printing, intaglio printing, UV exposure, air purification, sterilization, 3D printing and other industries.



Characteristics of CV060501A0V128Z1-S6P6


^Electrical / Optical Characteristics (Ta=25℃, RH=40%)


Parameter Symbol Units Value
Peak Wavelength λp nm 400-410
Radiant Flux Φe mW 28000~56000
Forward Voltage VF V 20~23
View Angle 2θ1/2 deg 120

^Absolute Maximum Ratings (Ta=25°C, RH=40%)


Parameter Symbol Units Value
DC Forward Current IFmax mA 4200
Maximum Rating Junction Temperature Tjmax °C 80
Operating Temperature Range Topr °C -40 ~ +60
Storage Temperature Range Tstg °C -40 ~ +85



Package Dimensions & Circuit

(Unit: mm)


405nm COB LED Module 0





Q1: Are you a factory or dealer?

A1: We are a real and professional manufacturer in UV LED.


Q2: What products do you main business?

A2: We are Specialized in full inorganic package UV LED and UV LED module.


Q3: How about your quality?
A3: Use top quality material to make sure stable quality. Every product passed aging test well then delivery to every client.


Q4: Can you offer customized design and manufacturing?

A4: Yes, we offer customized design and manufacturing. We offer free-of-charge PCB design and electrical and optical test. All our LED modules are customized designs for customers from all over the world.


Q5: How to make a customized LED module?

A5: Firstly, we need to confirm customer requirement through communication.
      Secondly, we create the LED layout drawing and hole bitmap for confirmation
      Thirdly, we make and test the sample board
      Fourthly, we perform electronic and optical property parameters measurement
      Fifthly, we go through reliability test.
      Sixthly, we package and deliver the order package after getting Acceptance of Evaluation from Technical department.
