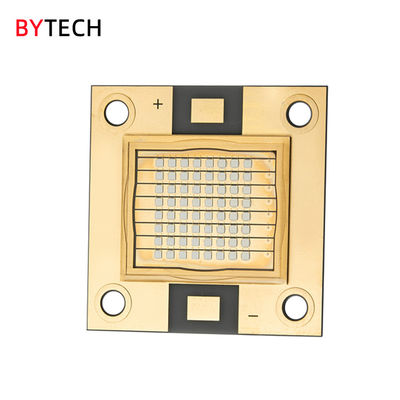

100W 405nm UV LED

100W 405nm UV LED
100W 405nm UV LED 100W 405nm UV LED 100W 405nm UV LED 100W 405nm UV LED

Large Image :  100W 405nm UV LED

Product Details:
Place of Origin: China
Brand Name: Bytech
Certification: ISO9001, RoHS
Model Number: CV060501A0V128Z1-S8P8
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Anti-electrostatic packaging
Delivery Time: 2-7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 20000000 pcs per month

100W 405nm UV LED

Radiation Angle: 120 Degree Module Size: 37mm*37mm
Peak Wavelength: 400-410nm Radiant Flux: 60-100W
Current: 5600mA Voltage: 26-30V
Junction Temperature: 80℃ Working Hours: >20000 Hours
High Light:

100W 405nm UV LED


30V 405nm UV LED


RoHS 405nm UV LED

BYTECH CNG3737 100W 405nm UV LED modules for 3D printing 395nm 405 uv led



Company Introduction:


Bytech is the first company in China to launch full inorganic package UV LED which is based on CMH(Ceramic,Metal,hard glass) technology platfrom. And we has applied for 15 patents since 2013 inculding 13 authorized patents. At present, We can provide CMH series (high reliability) and U/ D series (high cost performance) products. It covers curing, printing, (money) authentication, medical, disinfection/ sterilization and security industry.



Characteristics of CV060501A0V128Z1-S8P8


1. Electrical / Optical Characteristics (Ta=25℃, RH=40%)


Parameter Symbol Units Value
Peak Wavelength λp nm 400-410
Radiant Flux Φe mW 60000~100000
Forward Voltage VF V 26~30
View Angle 2θ1/2 deg 120

2. Absolute Maximum Ratings (Ta=25°C, RH=40%)


Parameter Symbol Units Value
DC Forward Current IFmax mA 5600
Maximum Rating Junction Temperature Tjmax °C 80
Operating Temperature Range Topr °C -40 ~ +60
Storage Temperature Range Tstg °C -40 ~ +85



Package Dimensions & Circuit

(Unit: mm)


100W 405nm UV LED 0



Production Line


100W 405nm UV LED 1



Quality Control


In order to continuously enhance the quality of management and meet customers’ needs, we have passed through the ISO9001 quality management system certification.

fixtures modern is produced through standard procedures conducted by trained staffs.
100% of the LED fixtures will be tested and keep lighting for 24 hours to test its quality reliability, and we will also test its temperature after 24 hours lighting.
Then after it is cool we again test 100% of the lamps to see if it still work well. Each led Cabinet light should pass all these QC procedures before the packing.
