|View Angle:||120°||Dimension Of Copper Substrate:||26.8*28mm|
|Peak Wavelength:||360-370nm||Optical Power:||9-11w|
|Lifespan Hours:||>20000 Hours||Forward Current:||9A|
COB UV LED Module,
370nm UV LED Module,
4V UV LED Module

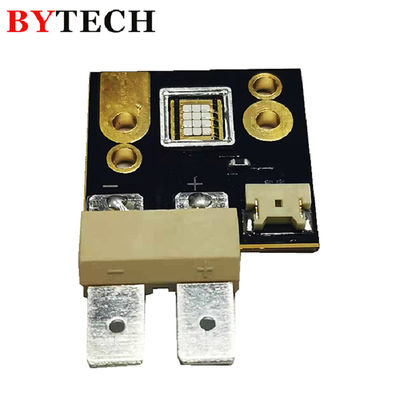

BYTECH 9W 10w 11w 360nm 365nm 370nm DOB UV LED module for 3D Printer
BYTECH Electronics CO., Ltd, Chinese national high and new tech enterprise.
It is the first company in China to produce and sale the full inorganic UV LEDs, and is the expert for provide UV application solutions.
By now, BYTECH can provide CMH series (high reliability) and U/ D series (high cost performance) products. It covers curing, printing, (money) authentication, medical, disinfection/ sterilization and security industry.
So any UV LED demands do you have, contact us freely!
Characteristics of TLM2728A01
1) Electrical / Optical Characteristics (Ta=25℃, RH=40%)
|Spectrum Half Width||Δλ||nm||15-18|
2) Absolute Maximum Ratings (Ta=25°C, RH=40%)
|Maximum Rating Forward Current||IFmax||A||24|
|Maximum Rating Junction Temperature||Tjmax||°C||125|
|Operating Temperature Range||Topr||°C||-10 ~ +85|
|Storage Temperature Range||Tstg||°C||-40 ~ +100|
Product ID: TLM2728A01
* T:High thermal conductivity copper substrate；
* L:Aluminum dam；
* M:COB Module；
* 2728:Dimension of copper substrate 26.8*28mm；
* A01:Chip peak wavelength code:360~370nm；
Package Dimensions and Circuit:
Q1: Are you a factory or dealer?
A1: We are a real and professional manufacturer in UV LED.
Q2: What products do you main business?
A2: We are Specialized in full inorganic package UV LED and UV LED module.
Q3: How about your quality?
A3: Use top quality material to make sure stable quality. Every product passed aging test well then delivery to every client.
Q4: Can you offer customized design and manufacturing?
A4: Yes, we offer customized design and manufacturing. We offer free-of-charge PCB design and electrical and optical test. All our LED modules are customized designs for customers from all over the world.
