Product Details:
|
| View Angle: | 60 Degree | Dimension: | 7.0mm×7.0mm×3.77mm |
|---|---|---|---|
| Peak Wavelength: | 417.5~425nm | Radiant Flux: | 5000~8000mW |
| Lifespan Hours: | >20000 Hours | Use In: | Phototherapy |
| Packaging: | Full Inorganic | OEM: | Provide |
| High Light: | BYTECH 5 Watt UV LED,6868 5 Watt UV LED,LED 420nm |
||

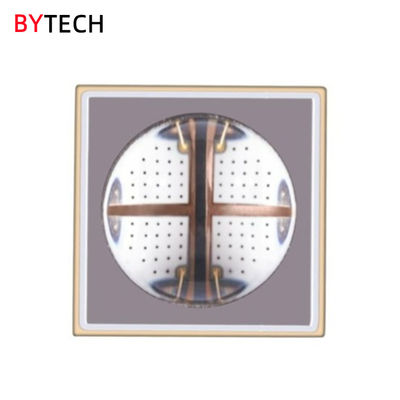

BYTECH high power 5W to 8W 420nm UV LED for coating 6868 UV LED for printing
Company Introduction:
Bytech is the first company in China to launch full inorganic package UV LED which is based on CMH(Ceramic,Metal,hard glass) technology platfrom. We can provide CMH series (high reliability) and U/ D series (high cost performance) products, including UVA/UVB/UVC/VCSEL. It covers curing, printing, (money) authentication, medical, disinfection/ sterilization and security industry.
Characteristics of CMH268ABV203Z6-S2P2
1' Electrical / Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units | Value |
| Peak Wavelength | λp | nm | 417.5~425 |
| Radiant Flux | Φe | mW | 5000~8000 |
| Inverse voltage | Vr | V | 7.0~8.2 |
| Forward Voltage | VF | V | 10 |
| Thermal Resistance | Rth | °C/W | ≤20 |
| Spectrum Half Width | Δλ | nm | 20 |
| View Angle | 2θ1/2 | deg | 60 |
2' Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units | Value |
| DC Forward Current | IFmax | mA | 2000 |
|
Peak Forward Current (1/10 duty@1khz) |
IFp | mA | 2500 |
| Maximum Rating Junction Temperature | Tjmax | °C | 125 |
| Operating Temperature Range | Topr | °C | -40 ~ +65 |
| Storage Temperature Range | Tstg | °C | -40 ~ +85 |
Characteristics of UV LED
Features
● Based on CMH full inorganic packaging technology;
● Dimension: 7.0mm×7.0mm×3.77mm;
● Long operating life;
● High reliability;
● Superior ESD protection;
● RoHS compliant.
Package
Quality Control
In order to continuously enhance the quality of management and meet customers’ needs, we have passed through the ISO9001 quality management system certification.
fixtures modern is produced through standard procedures conducted by trained staffs.
100% of the LED fixtures will be tested and keep lighting for 24 hours to test its quality reliability, and we will also test its temperature after 24 hours lighting.
Then after it is cool we again test 100% of the lamps to see if it still work well. Each led Cabinet light should pass all these QC procedures before the packing.
