Product Details:
|
Material: | Ceramic, Metal, Hard Glass | Maximum Rating Junction Temperature: | 125 Degree |
---|---|---|---|
Peak Wavelength: | 410-415nm, 415-420nm | Radiant Flux: | 1200-2800mW |
Storage Temperature Range: | -40~+100 | Use In: | Coating, UV Curing, Printing |
Forward Current: | 1200 MA | Package Size: | 3.5*3.5 Mm |
High Light: | CMH 3535 UV LED,Coating 3535 UV LED,415nm UV LED |

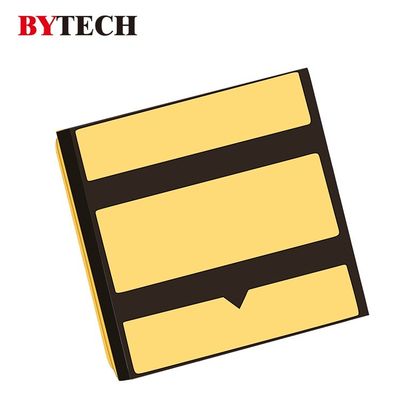

BYTECH CMH 410nm to 420nm 3535 uv led for coating 415nm UV LED for UV curing
Company Introduction:
Bytech is the first company in China to launch full inorganic package UV LED, and CMH (Ceramic,Metal,hard glass) technology is a independent intellectual property owned by BYTECH.
At present,Our UV LED product cover wavelengths of UVA, UVB and UVC, which has been applied for offset printing, screen printing, ink-jet printing, intaglio printing, UV exposure, air purification, sterilization, 3D printing and other industries.
Characteristics of CMH235AAV123Z1
- Electrical / Optical Characteristics (Ta=25℃, RH=40%)
Parameter | Symbol | Units | Value |
Peak Wavelength | λp | nm | 410-420 |
Radiant Flux | Φe | mW | 1200~1600 |
Forward Voltage | VF | V | 3.4~4.2 |
Thermal Resistance | Rth | °C/W | 5.0 |
Spectrum Half Width | Δλ | nm | 18 |
View Angle | 2θ1/2 | deg | 45 |
- Absolute Maximum Ratings (Ta=25°C, RH=40%)
Parameter | Symbol | Units | Value |
DC Forward Current | IFmax | mA | 1200 |
Maximum Rating Junction Temperature | Tjmax | °C | 125 |
Operating Temperature Range | Topr | °C | -40 ~ +85 |
Storage Temperature Range | Tstg | °C | -40 ~ +100 |
Package Dimensions & Circuit
(Unit: mm):
Ranks (IF=1000mA, Ta=25℃, RH=40%)
Product Application Information
Applications
* Fluorescent spectroscopy
* Sensors and monitors
* Bio-analysis/detection
* Phototherapy
* UV curing
* Printing
* Coating
Why You Choose Bytech
1, Partners in the Workplace, A list of outstanding organizations we have teamed with to help building a successful quality controlling program.
2, Our UV LED are sold to reseller professionals in over 50 countries worldwide for years.
3, All of our UV LED made fresh within one month of your order, and has a two year warranty.
4, UV LED in the China in accordance to strict industry regulations.
5, All UV LED are subject to continuous laboratory quality testing.
6, We offer top quality light fixtures for prices well below the market standard.
