Product Details:
|
| UV LED Size: | 3.70×3.70×1.86mm | Chips Size: | 20x20mil |
|---|---|---|---|
| Chips Brand: | Sanan | Intermittent Current IF: | 200ma |
| Intermittent Radiant Flux: | 16-24mw | Voltage: | 5.5-9V |
| Maximum Rating Forward Current: | 200MA | Application: | Sterilization |
| High Light: | UVC 2525 LED Chip,Electronic 2525 LED Chip,6mw Cob Lamp Beads |
||

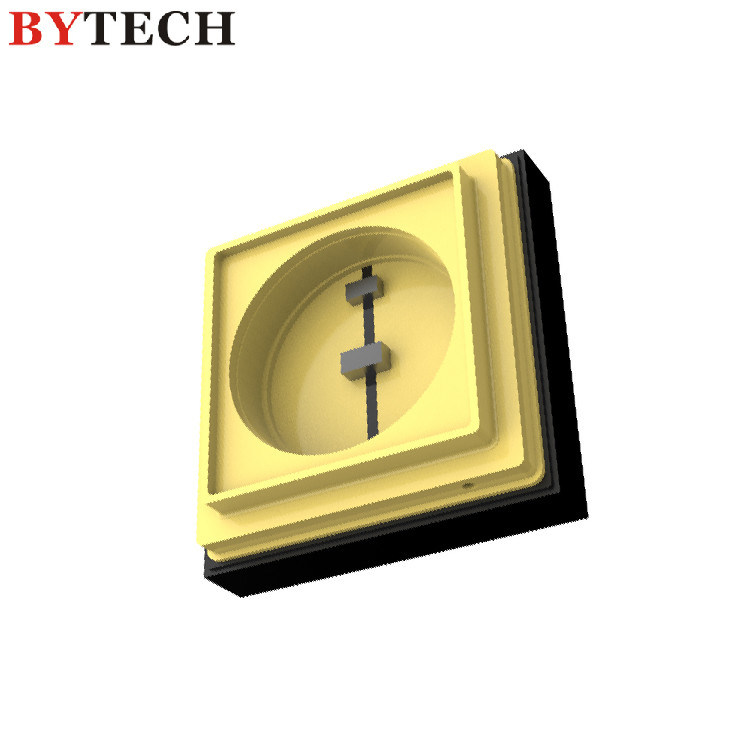

0.2w electronic power 4-6mw raditant flux power UVC LED
UV LED's Characteristics:
|
Parameter
|
Symbol
|
Units
|
Value(Continuous current IF=40mA)
|
Value(Intermittent current IF=60mA)
|
|
Peak Wavelength
|
λp
|
nm
|
270-280
|
270-280
|
|
Radiant Flux
|
Φe
|
mW
|
4-6
|
6-8 |
|
Forward Voltage
|
VF
|
V
|
5-9
|
5.5-9
|
|
Thermal Resistance
|
Rth
|
°C/W
|
≦20
|
≦20
|
|
Spectrum Half Width
|
Δλ
|
nm
|
9.5
|
9.7 |
|
View Angle
|
2θ1/2
|
deg
|
120
|
120
|
Features:
