Product Details:
|
Storage Temperature Range: | -40-+85 Degree | Package Size: | 3.3mm*3.3mm |
---|---|---|---|
Peak Wavelength: | 250~260nm | Chip Brand: | Saman Or Others |
Dimension: | 3.35mm×3.35mm× 1.55mM | View Angle: | 120 Degree |
Protection: | Superior ESD | Forward Voltage: | 5.0-9.0 |
High Light: | 255nm Surface Mount UV LED,395nmSurface Mount UV LED,ESD Protection uv led antibacterial |

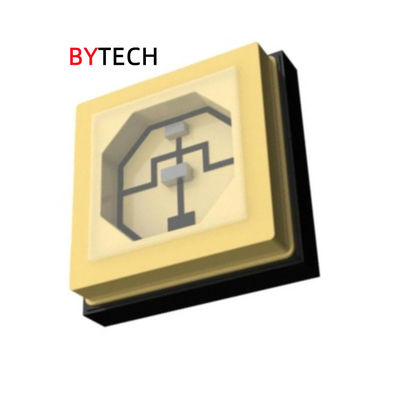

255nm 395nm Mix wavelength uvc leds for sterilization and purification
Company Introduction:
Bytech is the first company in China to launch full inorganic package UV LED which is based on CMH(Ceramic,Metal,hard glass)technology platfrom, and we has applied for 15 patents since 2013 inculding 13 authorized patents.At present,Our UV LED product cover wavelengths of UVA, UVB and UVC, which has been applied for offset printing, screen printing, ink-jet printing, intaglio printing, UV exposure, air purification, sterilization, 3D printing and other industries. And we provide our clients with one-stop-shopping service, any UV LED module do you want, we can customize for you.
Characteristics of UV LED
1, Electrical / Optical Characteristics (Ta=25℃, RH=40%)
Parameter | Symbol | Units |
F65 (Continuous current IF=80mA) |
F65 (Intermittent current IF=100mA) |
F91 (Continuous current IF=60mA) |
Peak Wavelength | λp | nm | 250~260 | 250~260 | 390~400 |
Radiant Flux | Φe | mW | 4~8 | 6~10 | 50~80 |
Forward Voltage | VF | V | 5.0~9.0 | 5.0~9.0 | 3.0~4.0 |
Thermal Resistance | Rth | °C/W | ≦20 | ≦20 | ≦20 |
Spectrum Half Width | Δλ | nm | 10.5 | 10.5 | 11.5 |
View Angle | 2θ1/2 | deg | 120 | 120 | 120 |
2, Absolute Maximum Ratings (Ta=25°C, RH=40%)
Parameter | Symbol | Units | F65 | F91 |
Maximum Rating Forward Current | IFmax | mA | 100 | 90 |
Maximum Rating Junction Temperature | Tjmax | °C | 85 | 130 |
Operating Temperature Range | Topr | °C | -40 ~ +60 | -40 ~ +60 |
Storage Temperature Range | Tstg | °C | -40 ~ +85 | -40 ~ +85 |
Production Line:
Packaging:
Application:
Any question do you have, don't hesitate, contact us freely!
