Product Details:
|
| OEM: | Accept | Package Size: | 6.5mm*6.5mm |
|---|---|---|---|
| Peak Wavelength: | 270~280nm | Use In: | Disinfection |
| Voltage: | 18V | Radiation Angle: | 120deg |
| Radiant Flux: | 120-160mW | Chip Quantity: | Six Chips |
| High Light: | 120mW deep ultraviolet led,160mW uvc led disinfection,222nm UVC LED |
||

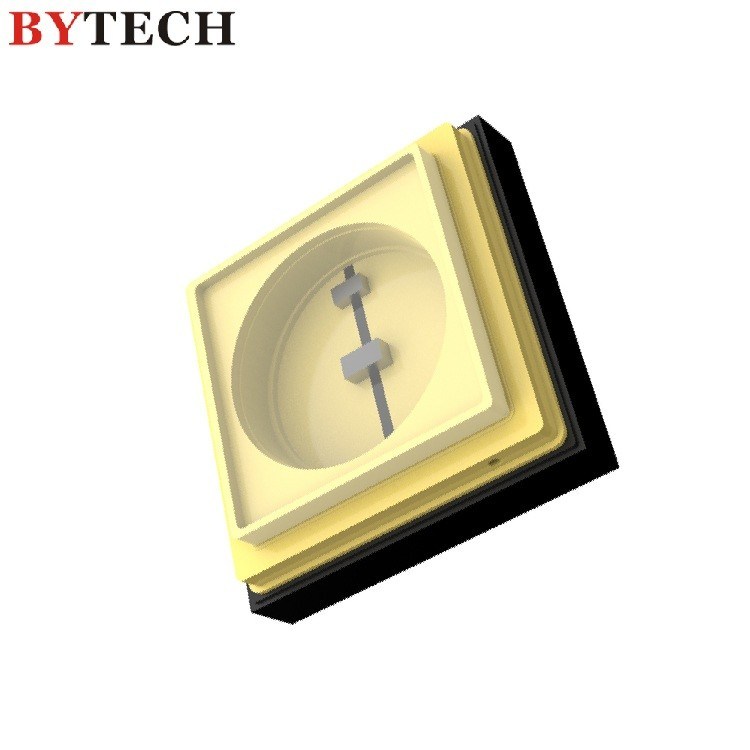

H565C2F33Z29-S2P3 120~160mW 255nm 265nm 275nm UVC LED for disinfection
Company Introduction:
Bytech is the first company in China to launch full inorganic package UV LED which is based on CMH(Ceramic,Metal,hard glass) technology platfrom. We can provide CMH series (high reliability) and U/ D series (high cost performance) products, including UVA/UVB/UVC/VCSEL. It covers curing, printing, (money) authentication, medical, disinfection/ sterilization and security industry.
Characteristics of UVC LED
1. Electrical / Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units |
Value (Continuous current IF=450mA) |
Value (Intermittent current IF=600mA |
| Peak Wavelength | λp | nm | 270~280 | 270~280 |
| Radiant Flux | Φe | mW | 100~140 | 120~160 |
| Forward Voltage | VF | V | 10.0~18.0 | 11.0~18.0 |
| Thermal Resistance | Rth | °C/W | ≦20 | ≦20 |
| Spectrum Half Width | Δλ | nm | 9.5 | 9.5 |
| View Angle | 2θ1/2 | deg | 120 | 120 |
2. Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units | F41 |
| Maximum Rating Forward Current | IFmax | mA | 600 |
| Maximum Rating Junction Temperature | Tjmax | °C | 85 |
| Operating Temperature Range | Topr | °C | -10 ~ +85 |
| Storage Temperature Range | Tstg | °C | -40 ~ +100 |
Product ID: H565C2F33Z29-S2P3
● H: Six LED chips
● 5: radiation angle,120°;
● 65: package size,6.5mm*6.5mm;
● C2: peak wavelength,270~280nm;
● F33: LED chip code, flip chip;
● Z29: Zener chip code
Package Dimensions and Circuit
(Unit: mm)
Package
