Product Details:
|
| Radiation Angle: | 120 Degree | Module Size: | 37mm*37mm |
|---|---|---|---|
| Peak Wavelength: | 400-410nm | Radiant Flux: | 60-100W |
| Current: | 5600mA | Operating Temperature Range: | -40 ~ +60℃ |
| Storage Temperature Range: | -40 ~ +85℃ | Light Color: | Violet |
| High Light: | 100W COB LED Module,BYTECH COB LED Module,405nm UV LED Module |
||

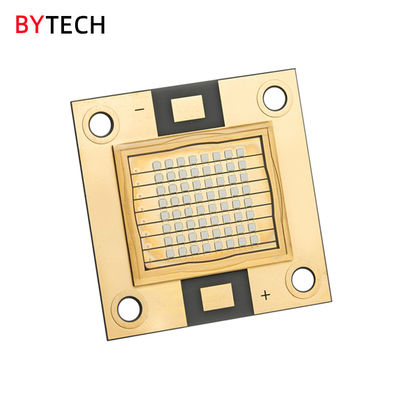

BYTECH CNG3737 60W to 100W 405nm COB LED module for LCD 3D printer
Characteristics of CV060501A0V128Z1-S8P8
CNG1313 series 8 string 8 parallel
1)Application is ＞20cm far distance or large area for LCD screen.
2)Life time more than 10000hours ,it have the ROHS certificate.
3)14mmx14mm light-emitting area;
1. Electrical / Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units | Value |
| Peak Wavelength | λp | nm | 400-410 |
| Radiant Flux | Φe | mW | 60000~100000 |
| Forward Voltage | VF | V | 26~30 |
| View Angle | 2θ1/2 | deg | 120 |
2. Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units | Value |
| DC Forward Current | IFmax | mA | 5600 |
| Maximum Rating Junction Temperature | Tjmax | °C | 80 |
| Operating Temperature Range | Topr | °C | -40 ~ +60 |
| Storage Temperature Range | Tstg | °C | -40 ~ +85 |
Package Dimensions & Circuit
(Unit: mm)
Production Line
Company Introduction:
Bytech is the first company in China to launch full inorganic package UV LED which is based on CMH(Ceramic,Metal,hard glass) technology platfrom. We can provide CMH series (high reliability) and U/ D series (high cost performance) products, including UVA/UVB/UVC/VCSEL. It covers curing, printing, (money) authentication, medical, disinfection/ sterilization and security industry.
