Product Details:
|
| Light Color: | Deep Ultraviolet | Use In: | Water Disinfection |
|---|---|---|---|
| Wavelength: | 250nm~260nm | Radiation Angle: | 30degree |
| Radiant Flux: | 8~12mW (IF-100mA) | Work Hours: | Over 20000 Hours |
| Spectrum Half Width: | 10.2nm | Thermal Resistance: | ≦20 |
| High Light: | 250nm UVC LEDS,260nm UVC LEDS,Germicidal UVC LED |
||

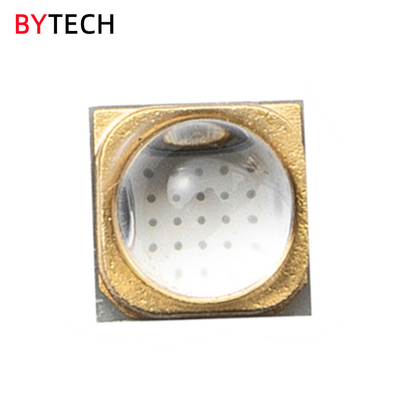

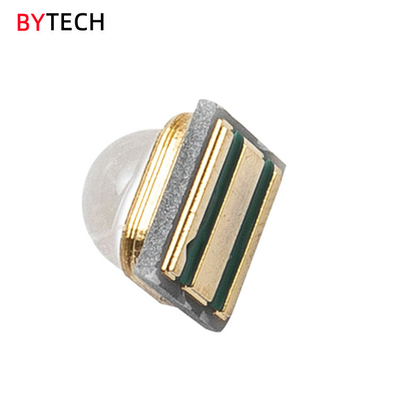

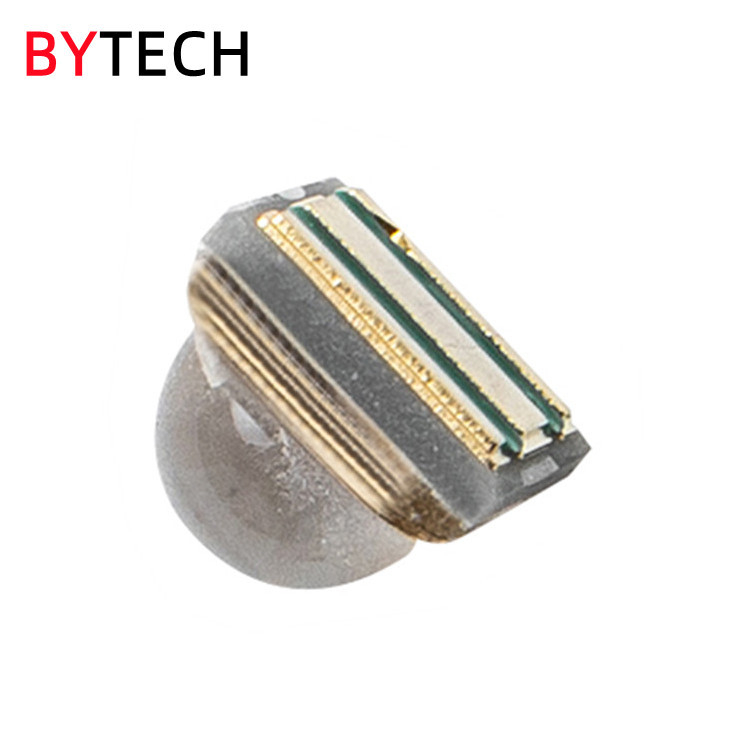

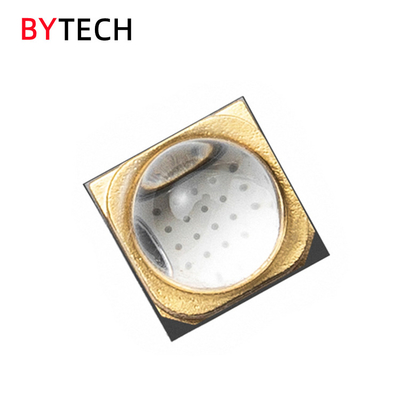

BYTECH U135C0F65Z30 germicidal 250nm 255nm 260nm UVC LEDs for water disinfection
Company Introduction:
Bytech is the first company in China to launch full inorganic package UV LED which is based on CMH(Ceramic,Metal,hard glass)technology platfrom, and we has applied for 15 patents since 2013 inculding 13 authorized patents.
At present,Our UV LED product cover wavelengths of UVA, UVB and UVC, which has been applied for offset printing, screen printing, ink-jet printing, intaglio printing, UV exposure, air purification, sterilization, 3D printing and other industries. And we provide our clients with one-stop-shopping service, any UV LED module do you want, we can customize for you.
Characteristics of U135C0F65Z30
1, Electrical / Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units |
F65 (Continuous current IF=80mA) |
F65 (Intermittent cur[1]rent IF=100mA |
| Peak Wavelength | λp | nm | 250~260 | 250~260 |
| Radiant Flux | Φe | mW | 6~10 | 8~12 |
| Forward Voltage | VF | V | 5~9 | 5~9 |
| Thermal Resistance | Rth | °C/W | ≦20 | ≦20 |
| Spectrum Half Width | Δλ | nm | 10.2 | 10.2 |
| View Angle | 2θ1/2 | deg | 30 | 30 |
1, Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units | Value |
| Maximum Rating Forward Current | IFmax | mA | 100 |
| Maximum Rating Junction Temperature | Tjmax | °C | 85 |
| Operating Temperature Range | Topr | °C | -40 ~ +60 |
| Storage Temperature Range | Tstg | °C | -40 ~ +85 |
Applications
● Sterilization and disinfection
● Fluorescent spectroscopy
● Water purification
● Air purification
Package Dimensions & Circuit
(Unit: mm):
Characteristics Diagrams
Package
