Product Details:
|
| UVC LED: | With Quartz Glass Lens | Dimension: | 3.55*3.55*3.20mm |
|---|---|---|---|
| Peak Wavelength: | 250~260nm | View Angle: | 60 Degree |
| Package Size: | 3.5mm*3.5mm | Work Hours: | > 20000 Hours |
| Spectrum Half Width: | 10.3nm | Forward Voltage: | 5-9V |
| High Light: | 3.5mm*3.5mm UVC LEDS,9V UVC LEDS,UVC LED 254nm |
||

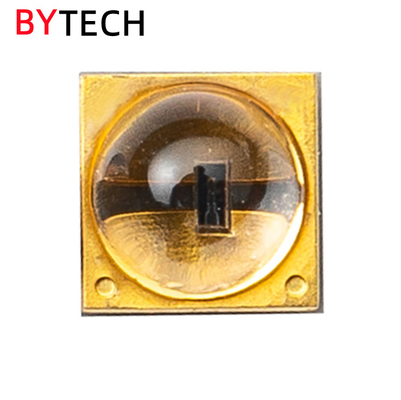

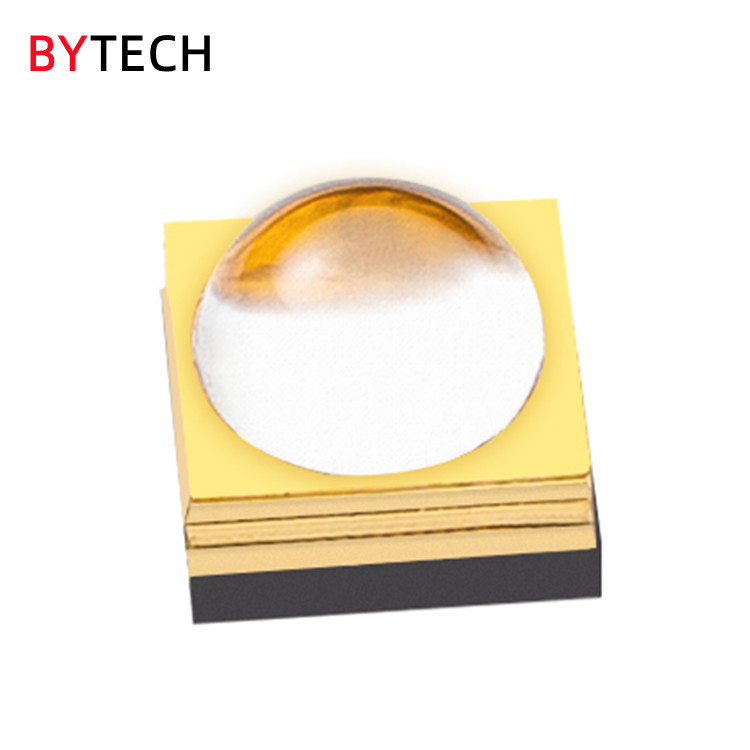

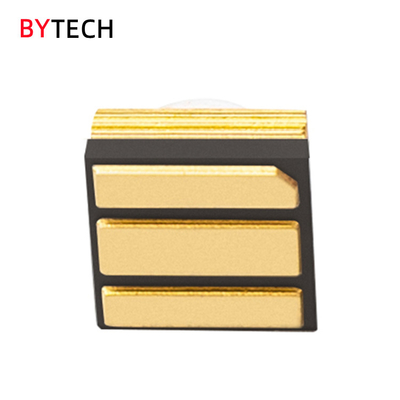

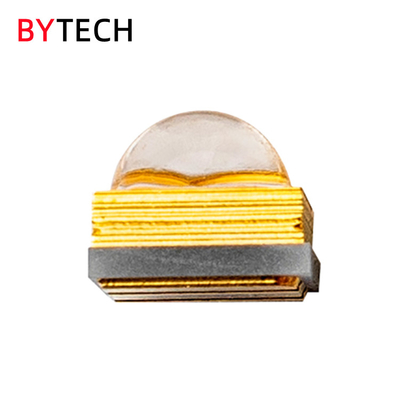

BYTECH U335C0F65Z30 254nm 255nm 260nm uvc leds for Air purification
Company Introduction:
Bytech is the first company in China to launch full inorganic package UV LED which is based on CMH(Ceramic,Metal,hard glass)technology platfrom, and we has applied for 15 patents since 2013 inculding 13 authorized patents.
At present,Our UV LED product cover wavelengths of UVA, UVB and UVC, which has been applied for offset printing, screen printing, ink-jet printing, intaglio printing, UV exposure, air purification, sterilization, 3D printing and other industries. And we provide our clients with one-stop-shopping service, any UV LED module do you want, we can customize for you.
Characteristics of U335C0F65Z30
* Electrical / Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units | F65 | F65 |
| Peak Wavelength | λp | nm | 250~260 | 250~260 |
| Radiant Flux | Φe | mW | 6~10 | 8~12 |
| Forward Voltage | VF | V | 5~9 | 5.5~9 |
| Thermal Resistance | Rth | °C/W | ≦20 | ≦20 |
| Spectrum Half Width | Δλ | nm | 10.3 | 10.3 |
| View Angle | 2θ1/2 | deg | 60 | 60 |
* Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units | Value |
| Maximum Rating Forward Current | IFmax | mA | 100 |
| Maximum Rating Junction Temperature | Tjmax | °C | 85 |
| Operating Temperature Range | Topr | °C | -40 ~ +60 |
| Storage Temperature Range | Tstg | °C | -40 ~ +85 |
Product ID: U335C0F65Z30
● U: Packaging technology,silicone dispensing
● 3:radiation angle,60°
● 35: package size,3.5mm*3.5mm
● C0: peak wavelength,250~260nm
● F65: LED chip code, flip chip
● Z30: Zener chip code
Package Dimensions & Circuit
(Unit: mm):
Characteristics Diagrams
Product Application Information
