Product Details:
|
| Radiation Angle: | 120deg | Dimension: | 12.65mm*12.65mm |
|---|---|---|---|
| Wavelength: | 400nm-410nm | Radiant Flux: | 36W-48W |
| Forward Voltage: | 20V-24V | Test Current: | 4200mA |
| Spectrum Half Width: | 15nm | Use In: | 3D Printer |
| High Light: | 395nm DOB LED Module,4200mA DOB LED Module |
||

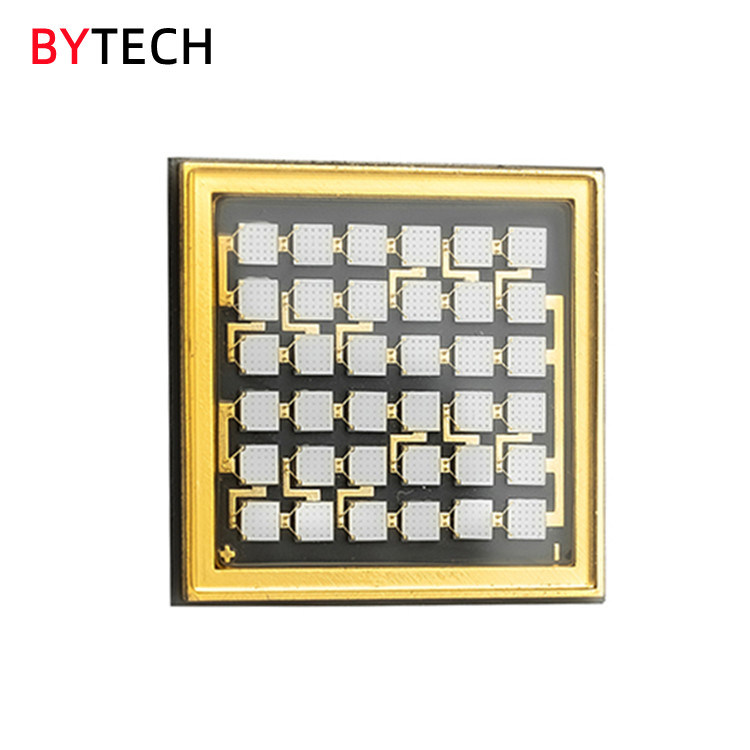

High power density 48W 395nm 405nm DOB LED Module for 3D Printer
Company Introduction:
Bytech Electronics Co., Ltd is the first company in China to launch full inorganic package UV LED which is based on CMH (Ceramic, Metal, hard glass) technology platform, and we have applied for 15 patents since 2013 including 13 authorized patents.
At present, Our UV LED product cover wavelengths of UVA, UVB and UVC, which has been applied for offset printing, screen printing, ink-jet printing, intaglio printing, UV exposure, air purification, sterilization, 3D printing and other industries. And we provide our clients with one-stop-shopping service, any UV LED module do you want, we can customize for you.
Characteristics of CM1313A0V128Z1A1-S6P6
* Electrical / Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units | Value |
| Test current | I | A | 4200 |
| Peak Wavelength | λp | nm | 400-410 |
| Radiant Flux | Φe | mW | 36000-48000 |
| Forward Voltage | VF | V | 20~24 |
| Spectrum Half Width | Δλ | nm | 15 |
* Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units | Value |
| DC Forward Current | IFmax | mA | 4200 |
| Maximum Rating Junction Temperature | Tjmax | °C | 125 |
| Operating Temperature Range | Topr | °C | -30 ~ +85 |
| Storage Temperature Range | Tstg | °C | -40 ~ +100 |
Product ID CM1313A0V128Z1A1-S6P6
C:Ceramic substrate；
M:COB Module；
1313:Dimension of substrate 12.65*12.65mm
A0:Chip peak wavelength code:400~410nm；
V128:LED chip code；
Z1:Zener chip code；
A1:Product version；
S6P6:Chips combination, 6 in series and 6 in parallel
Package Dimensions & Circuit
(Unit: mm)
Features
● UVA LED COB module
● High thermal conductivity AIN Ceramic substrate package
● With ESD protection device
● Quartz glass lens
● Dimension:12.65mm×12.65mm×1.83mm
● Long operating life
● RoHS compliant
Production Line
Our service
FAQ
Q1: Are you a factory or dealer?
A1: We are a real and professional manufacturer in UV LED.
Q2: What products do your main business?
A2: We are Specialized in full inorganic package UV LED and UV LED module.
Q3: How about your quality?
A3: Use top quality material to make sure stable quality. Every product passed aging test well then delivery to every client.
Q4: Can you offer customized design and manufacturing?
A4: Yes, we offer customized design and manufacturing. We offer free-of-charge PCB design and electrical and optical test. All our LED modules are customized designs for customers from all over the world.
Q5: How to make a customized LED module?
A5: Firstly, we need to confirm customer requirement through communication.
Secondly, we create the LED layout drawing and hole bitmap for confirmation
Thirdly, we make and test the sample board
Fourthly, we perform electronic and optical property parameters measurement
Fifthly, we go through reliability test.
Sixthly, we package and deliver the order package after getting Acceptance of Evaluation from Technical department.
