Product Details:
|
| Radiation Angle: | 120deg | Dimension: | 12.65mm×12.65mm×1.83mm |
|---|---|---|---|
| Wavelength: | 400nm-410nm | Radiant Flux: | 36000mW-48000mW |
| Forward Voltage: | 20V-24V | Current: | 4.2A |
| Spectrum Half Width: | 15nm | Use In: | 3D Printing |
| High Light: | 405nm Smd LED Module,120deg Smd LED Module,3D Printer Smd LED Module |
||

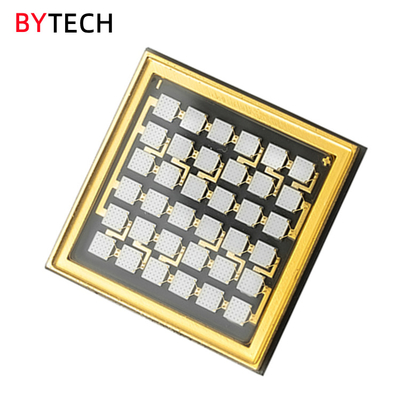

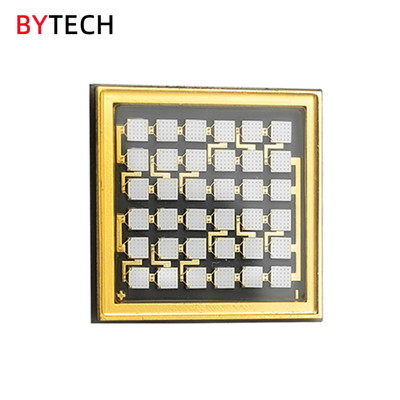

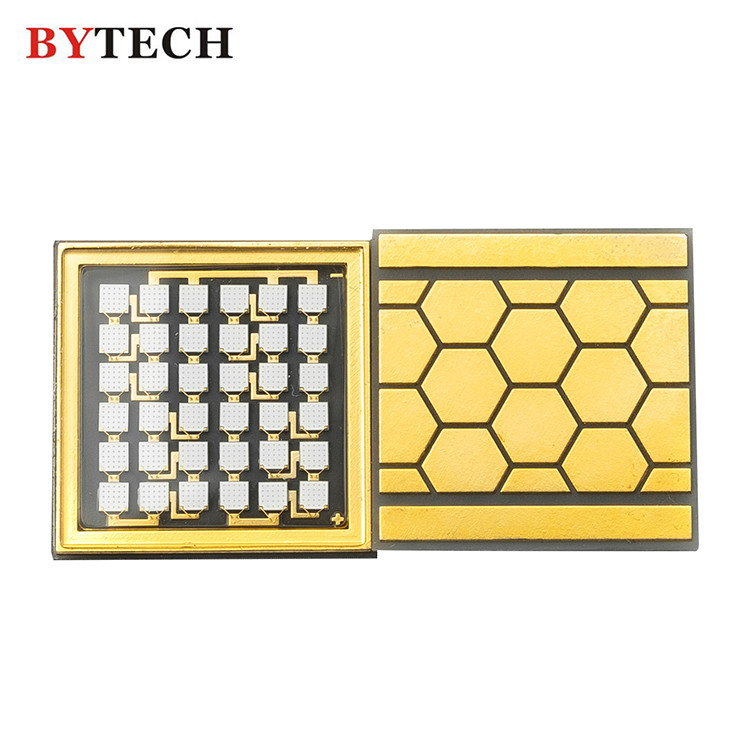

Bytech LED module 395nm 405nm smd led module for 3D Printer
Company Introduction:
Bytech Electronics Co., Ltd is the first company in China to launch full inorganic package UV LED which is based on CMH (Ceramic, Metal, hard glass) technology platform. We can provide CMH series (high reliability) and U/ D series (high-cost performance) products, including UVA/UVB/UVC/VCSEL. It covers curing, printing, (money) authentication, medical, disinfection/ sterilization and security industry.
Characteristics of CM1313A0V128Z1A1-S6P6
* Electrical / Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units | Value |
| Test current | I | A | 4200 |
| Peak Wavelength | λp | nm | 400-410 |
| Radiant Flux | Φe | mW | 36000-48000 |
| Forward Voltage | VF | V | 20~24 |
| Spectrum Half Width | Δλ | nm | 15 |
* Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units | Value |
| DC Forward Current | IFmax | mA | 4200 |
| Maximum Rating Junction Temperature | Tjmax | °C | 125 |
| Operating Temperature Range | Topr | °C | -30 ~ +85 |
| Storage Temperature Range | Tstg | °C | -40 ~ +100 |
Product ID CM1313A0V128Z1A1-S6P6
C:Ceramic substrate；
M:COB Module；
1313:Dimension of substrate 12.65*12.65mm
A0:Chip peak wavelength code:400~410nm；
V128:LED chip code；
Z1:Zener chip code；
A1:Product version；
S6P6:Chips combination, 6 in series and 6 in parallel
Package Dimensions & Circuit
(Unit: mm)
Features
● UVA LED COB module

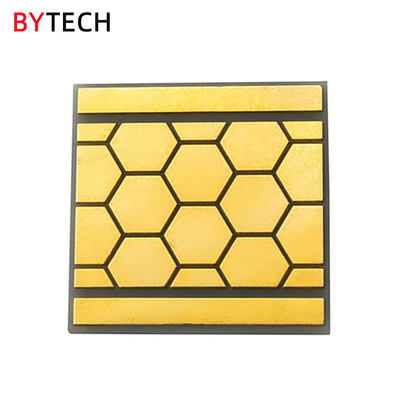

● High thermal conductivity AIN Ceramic substrate package
● With ESD protection device
● Quartz glass lens
● Dimension:12.65mm×12.65mm×1.83mm
● Long operating life
● RoHS compliant
