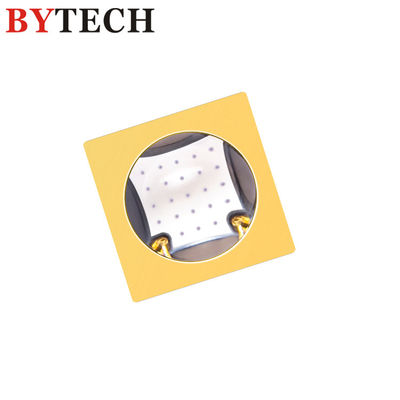

Sanan 45mil Chips SMD uVC LED 3535 45 Degree 1000mA

Sanan 45mil Chips SMD uVC LED 3535 45 Degree 1000mA
Sanan 45mil Chips SMD uVC LED 3535 45 Degree 1000mA Sanan 45mil Chips SMD uVC LED 3535 45 Degree 1000mA Sanan 45mil Chips SMD uVC LED 3535 45 Degree 1000mA Sanan 45mil Chips SMD uVC LED 3535 45 Degree 1000mA

Large Image :  Sanan 45mil Chips SMD uVC LED 3535 45 Degree 1000mA

Product Details:
Place of Origin: Guangzhou,China
Brand Name: BYTECH
Certification: ROHS
Model Number: CMH235A1V107Z1
Payment & Shipping Terms:
Packaging Details: 45x40x25cm for 3 rolls, 2K pcs/one roll.
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100k/month
Contact Now

Sanan 45mil Chips SMD uVC LED 3535 45 Degree 1000mA

Description
Wavelength: 390-400nm Radiant Flux: 1400-1800mw
Inverse Voltage: 3.4-4.0V IF: 1000mA
DC Forward Current: 1200MA Operating Temperature Range: -40 ~ +60
Storage Temperature Range: -40 ~ +85 Warranty: 10000hours
High Light:

SMD UVC LED

,

45mil chip

,

uvc led 3535

Sanan 45mil chips 3535 45 degree smd uv led


Characteristics of UV LED:

Parameter Symbol Units
CMH235A1V107Z1
Peak Wavelength [1] λp nm 390-400
Radiant Flux [2] Φe  mW 1400~1800
Inverse voltage [3] Vr V 5
Forward Voltage [4] Vf V 3.4~4.0
Thermal Resistance [5] Rth °C/W 5
Spectrum Half Width Δλ nm 12
View Angle 2θ1/2 deg 45


Notes:

[1]. Peak wavelength measurement tolerance:±3nm;
[2]. Radiant flux measurement tolerance:±10%;
[3]. Φe is the total radiant Flux as measured with an integrated sphere;
[4]. Forward voltage measurement tolerance:±3%;
[5]. Rth is the thermal resistance between junction to substrate.


Feature:

●  CMH: packaging technology;
●  2: viewing angle, 45°;
●  35: package size,3.5mm*3.5mm;
●  A2: peak wavelength,390~400nm;
●  V106: LED chip code, vertical chip;
●  Z1: zener chip code;


BIN Rank ( IF=1000mA,Ta=25℃,RH=40%):

Sanan 45mil Chips SMD uVC LED 3535 45 Degree 1000mA 0
