Customized 60 Degree 250-260nm UV LED Lamp Beads For Sterilization

Customized 60 Degree 250-260nm UV LED Lamp Beads For Sterilization
Customized 60 Degree 250-260nm UV LED Lamp Beads For Sterilization Customized 60 Degree 250-260nm UV LED Lamp Beads For Sterilization Customized 60 Degree 250-260nm UV LED Lamp Beads For Sterilization Customized 60 Degree 250-260nm UV LED Lamp Beads For Sterilization

Large Image :  Customized 60 Degree 250-260nm UV LED Lamp Beads For Sterilization

Product Details:
Place of Origin: Guangzhou,China
Brand Name: BYTECH
Certification: ROHS
Model Number: U335C0F65Z30
Payment & Shipping Terms:
Packaging Details: Electrostatic packaging
Delivery Time: 7-15work days
Payment Terms: Western Union, T/T, MoneyGram, MoneyGram
Supply Ability: 100k/month
Contact Now

Customized 60 Degree 250-260nm UV LED Lamp Beads For Sterilization

Description
U: Packaging Technology，silicone Dispensing 3: Radiation Angle,60°
35: Package Size,3.5mm*3.5mm C0: Peak Wavelength,250~260nm
F65: LED Chip Code, Flip Chip Z30: Zener Chip Code.
Applications: Air Purification Warranty: 10000hours
High Light:

SterilizationUV LED Lamp Beads

,

Customized UV LED Lamp Beads

,

uv led 260 nm

customized 60 degree 250-260nm uvc smd led for sterilization





Characteristics of UV LED:



Parameter Symbol Units
F65 (Continuous current IF=80mA)
F65(Intermittent current IF=100mA)
Peak Wavelength λp nm
250~260
250~260
Radiant Flux Φe mW 6-10 8-12
Forward Voltage VF V 5-9 5-9
Thermal Resistance Rth °C/W ≦20 ≦20
Spectrum Half Width Δλ nm 10.2 10.2
View Angle 2θ1/2 deg 60 60





Features:



● UVC LED with quartz glass lens
● Dimension: 3.55mm×3.55mm×3.20mm
● Long operating life
● Deep ultraviolet
● High reliability
● Superior ESD protection
● RoHS compliant


Applications:

● Sterilization and disinfection
● Fluorescent spectroscopy
● Water purification
● Air purification

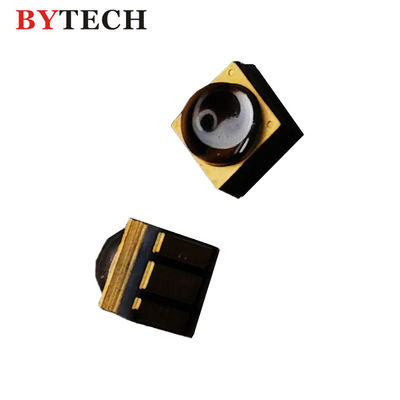

Package picture:

Customized 60 Degree 250-260nm UV LED Lamp Beads For Sterilization 0
