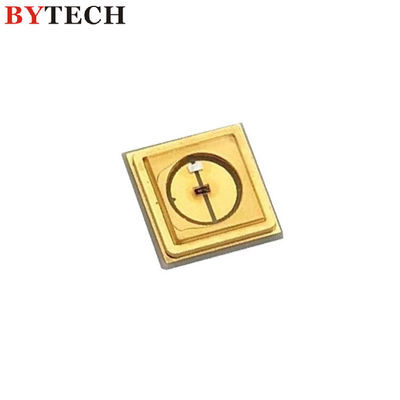

0.2w 40MA 6565 UV LED chip SMD 3-6MW Radiant Flux Power

0.2w 40MA 6565 UV LED chip SMD 3-6MW Radiant Flux Power
0.2w 40MA 6565 UV LED chip SMD 3-6MW Radiant Flux Power 0.2w 40MA 6565 UV LED chip SMD 3-6MW Radiant Flux Power 0.2w 40MA 6565 UV LED chip SMD 3-6MW Radiant Flux Power 0.2w 40MA 6565 UV LED chip SMD 3-6MW Radiant Flux Power

Large Image :  0.2w 40MA 6565 UV LED chip SMD 3-6MW Radiant Flux Power

Product Details:
Place of Origin: Guangzhou,China
Brand Name: BYTECH
Certification: ROHS
Model Number: U535C2F41Z4
Payment & Shipping Terms:
Packaging Details: Electrostatic packaging
Delivery Time: 5-7work days
Payment Terms: Western Union, T/T, MoneyGram, MoneyGram
Supply Ability: 10k/month

0.2w 40MA 6565 UV LED chip SMD 3-6MW Radiant Flux Power

Description
Cover: Quartz Glass Lens Dimension: 3.70mm×3.70mm×1.49mm
Clour: Deep Ultraviolet Protect: Superior ESD
Packaging Technology: Silicone Dispensing Radiation Angle: 120°
Peak Wavelength: 270~280nm Forward Voltage: 5-9V
Warranty: 10000hours Certificate: ROHS
High Light:

6565 UV LED Chip

,

6565 UV LED SMD

,

6565 smd led

40MA 3-6MW Radiant flux power 0.2w uvc led





Parameter
Symbol
Units
Value(Continuous
current IF=40mA)
Value(Intermittent
current IF=60mA)
Peak Wavelength
λp
nm
270~280
270~280
Radiant Flux
Φe
mW
4~6
6~8
Forward Voltage
VF
V
5~9
5.5~9
Thermal Resistance
Rth
°C/W
≦20
≦20
Spectrum Half Width
Δλ
nm
9.5
9.7
View Angle
2θ1/2
deg
120
120







Forward Voltage vs Forward Current:

0.2w 40MA 6565 UV LED chip SMD 3-6MW Radiant Flux Power 0


Relative Radiation Flux vs Forward Current:

0.2w 40MA 6565 UV LED chip SMD 3-6MW Radiant Flux Power 1


Test report:

0.2w 40MA 6565 UV LED chip SMD 3-6MW Radiant Flux Power 2
