Product Details:
|
| Material: | Ceramic, Metal, Hard Glass | Package Size: | 3.5mm*3.5mm |
|---|---|---|---|
| Peak Wavelength: | 390nm~400nm | Chip Brand: | Saman, LG Or Others |
| Dimension: | 3.7mm*3.7mm*2.5mm | Lifespan Hours: | >22000 Hours |
| Radiant Flux: | 1.8-2.2W | DC Forward Current: | 1200mA |
| High Light: | UVA LG LED Chip,365nm LG LED Chip,405nm LED |
||

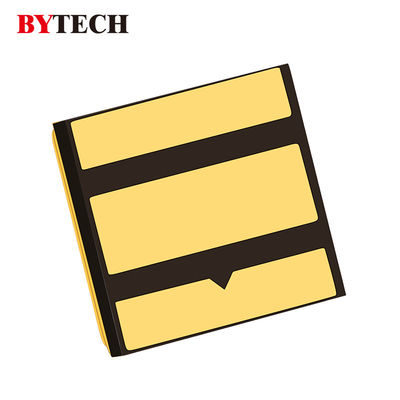

LG Chip UVA 365nm 375nm 385nm 395nm 405nm 415nm High Power SMD 3535 UV LED
Company Profile:
Bytech is the first company in China to launch full inorganic package UV LED which is based on CMH(Ceramic,Metal,hard glass)technology platfrom, and we has applied for 15 patents since 2013 inculding 13 authorized patents.
At present,Our UV LED product cover wavelengths of UVA, UVB and UVC, which has been applied for offset printing, screen printing, ink-jet printing, intaglio printing, UV exposure, air purification, sterilization, 3D printing and other industries. And we provide our clients with one-stop-shopping service, any UV LED module do you want, we can customize for you.
Characteristics of UV LED
1, Electrical / Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units | MH235A1V113Z1V2 (IF=1000mA) |
| Peak Wavelength | λp | nm | 390-400 |
| Radiant Flux | Φe | mW | 1800-2200 |
| Forward Voltage | VF | V | 3.4-4.2 |
| Thermal Resistance | Rth | °C/W | 5.0 |
| Spectrum Half Width | Δλ | nm | 15 |
| View Angle | 2θ1/2 | deg | 60 |
2, Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units |
CMH235A1V113Z1V2
|
| DC Forward Current | IFmax | mA | 1200 |
| Maximum Rating Junction Temperature | Tjmax | °C | 125 |
| Operating Temperature Range | Topr | °C | -10 ~ +85 |
| Storage Temperature Range | Tstg | °C | -40 ~ +100 |
Production Line:
Packaging:
Application:
FAQ
Q1: Do you supply OEM,ODM service?
A1: YES, absolutely it can be realized.
Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs, including products and quantity, our professional team will reply you very soon (mostly within few hours).
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, and it can be calculated.
Q6: How to place an order?
A6: If you want to place an order, Please feel free to send us an inquiry email or touch us by following tools, we shall reply you within 24hours(working day).
