Product Details:
|
| Working Time: | >20000 Hours | Operating Temperature(℃): | -10 ~ +85 |
|---|---|---|---|
| Peak Wavelength: | 305nm | Spectrum Half Width: | 11-12nm |
| Support Dimmer: | No | Forward Voltage: | 5-7V |
| Radiant Flux: | 3-5mW | Emitting Color: | Violet |
| High Light: | 405nm 3535 UV LED,Therapy 3535 UV LED,Medical 5mW UV LED |
||

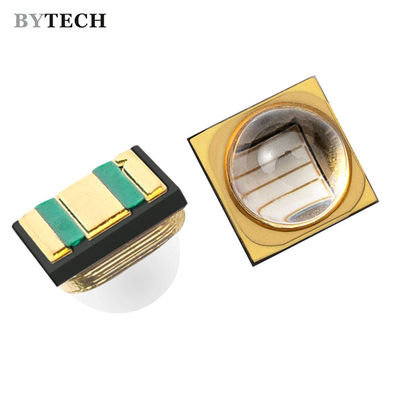

U335B2F43Z4 405nm 3535 UVB led for Medical illumination therapy 3535 uv curing
Company Introduction:
Bytech is the first company in China to launch full inorganic package UV LED which is based on CMH(Ceramic,Metal,hard glass) technology platfrom. And we has applied for 15 patents since 2013 inculding 13 authorized patents. At present, We can provide CMH series (high reliability) and U/ D series (high cost performance) products. It covers curing, printing, (money) authentication, medical, disinfection/ sterilization and security industry.
Characteristics of UV LED
* Electrical / Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units | Value |
| Peak Wavelength | λp | nm | 300-310 |
| Radiant Flux | Φe | mW | 3-5 |
| Forward Voltage | VF | V | 5-7 |
| Thermal Resistance | Rth | °C/W | ≤15 |
| Spectrum Half Width | Δλ | nm | 11-12 |
| View Angle | 2θ1/2 | deg | 120 |
* Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units | Value |
| DC Forward Current | IFmax | mA | 40 |
| Maximum Rating Junction Temperature | Tjmax | °C | 120 |
| Operating Temperature Range | Topr | °C | -10 ~ +85 |
| Storage Temperature Range | Tstg | °C | -40 ~ +100 |
Product ID: U335B2F43Z4
U: Packaging technology,silicone dispensing
3:radiation angle,120°
35: package size,3.5mm*3.5mm
B2: peak wavelength,300~310nm
F43: LED chip code, flip chip
Z4: Zener chip code
Package Dimensions and Circuit
(Unit: mm)
Production Line
Applications
● Sterilization and disinfection
● Fluorescent spectroscopy
● Water purification
● Air purification
