Product Details:
|
| LED Packaging: | Full Inorganic | Package Size: | 6.8mm*6.8mm |
|---|---|---|---|
| Peak Wavelength: | 385nm | Chip Brand: | Can Appoint |
| Circuit Connection: | Series 2 * Parallel 2 | Lifespan Hours: | >20000 Hours |
| OEM: | Yes | Sample Provide: | Yes |
| High Light: | 365nm SMD UV LED,375nm SMD UV LED,395nm High Power UV LED |
||

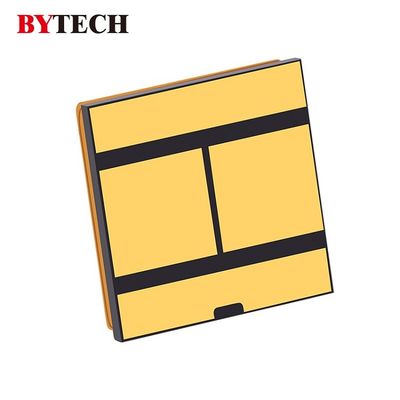

High power 385nm SMD UV LED 365nm 375nm 385nm 395nm SMD UV LED for uv curing
Introduction:
Bytech is the first company in China to launch full inorganic package UV LED which is based on CMH(Ceramic,Metal,hard glass) technology platfrom.
Our UV LED product cover wavelengths of UVA, UVB and UVC, which has been applied for offset printing, screen printing, ink-jet printing, intaglio printing, UV exposure, air purification, sterilization, 3D printing and other industries.
And we provide our customers with one-stop-shopping service, any UV LED module do you want, we can customize for you.
Characteristics of UV LED
1, Electrical/Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units | CMH268A2V219Z6 -S2P2 |
| Peak Wavelength | λp | nm | 380-390 |
| Radiant Flux | Φe | mW | 7000-9000 |
| Forward Voltage | VF | V | 7.0-8.0 |
| Backward Voltage | Vr | V | 10 |
| Thermal Resistance | Rth | °C/W | ≤2 |
| Spectrum Half Width | Δλ | nm | 12 |
| View Angle | 2θ1/2 | deg | 60 |
2, Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units | CMH268A2V219Z6 -S2P2 |
| DC Forward Current | IFmax | mA | 2000 |
| Maximum Rating Junction Temperature | Tjmax | °C | 3000 |
| Operating Temperature Range | Topr | °C | -10 ~ +65 |
| Storage Temperature Range | Tstg | °C | 0 ~ +40 |
Dimension for 6868 UV LED:
Design Size:
Unit (mm)
Packaging:
FAQ
Q1: Do you supply OEM,ODM service?
A1: YES, absolutely it can be realized.
Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs, including products and quantity, our professional team will reply you very soon (mostly within few hours).
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, and it can be calculated.
Q6: How to place an order?
A6: If you want to place an order, Please feel free to send us an inquiry email or touch us by following tools, we shall reply you within 24hours(working day).
