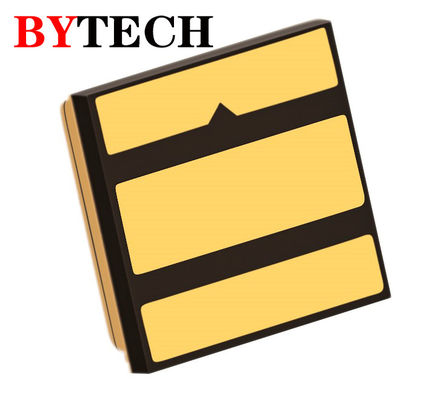

365nm Medical Flip UV LED Chip Radiation Angle 120 Degree

365nm Medical Flip UV LED Chip Radiation Angle 120 Degree
365nm Medical Flip UV LED Chip Radiation Angle 120 Degree 365nm Medical Flip UV LED Chip Radiation Angle 120 Degree 365nm Medical Flip UV LED Chip Radiation Angle 120 Degree 365nm Medical Flip UV LED Chip Radiation Angle 120 Degree

Large Image :  365nm Medical Flip UV LED Chip Radiation Angle 120 Degree

Product Details:
Place of Origin: China
Brand Name: Bytech
Certification: ISO9001, RoHS
Model Number: U535A4V133Z1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Anti-electrostatic packaging
Delivery Time: 2-7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 20000000 pcs per month

365nm Medical Flip UV LED Chip Radiation Angle 120 Degree

Description
Material: Quartz Glass Lens Dimension: 3.75mm*3.75mm*1.47mm
Peak Wavelength: 360nm~370nm Package Size: 3.5mm*3.5mm
Protection: Superior ESD Lifespan Hours: >20000 Hours
Radiation Angle: 120 Degree Sample Provide: Yes
High Light:

365nm UV LED Chip

,

quartz UV LED Chip

,

Bytech flip chip led

Radiation angle 120 degree 365nm UV LED chip for uv curing, medical uv led chip





Introduction:



Bytech is the first company in China to launch full inorganic package UV LED which is based on CMH(Ceramic,Metal,hard glass)technology platfrom, and we has applied for 15 patents since 2013 inculding 13 authorized patents.

At present,Our UV LED product cover wavelengths of UVA, UVB and UVC, which has been applied for offset printing, screen printing, ink-jet printing, intaglio printing, UV exposure, air purification, sterilization, 3D printing and other industries. And we provide our clients with one-stop-shopping service, any UV LED module do you want, we can customize for you.





Characteristics of U535A4V133Z1



1. Electrical / Optical Characteristics (Ta=25℃, RH=40%)



Parameter Symbol Units

U535A4V133Z1

(IF=1000mA)

Peak Wavelength λp nm 360-370
Radiant Flux Φe mW 1400-1800
Forward Voltage VF V 3.5-4.5
Thermal Resistance Rth °C/W 5.0
Spectrum Half Width Δλ nm 9
View Angle 2θ1/2 deg 120



2. Absolute Maximum Ratings (Ta=25°C, RH=40%)



Parameter Symbol Units

U535A4V133Z1

DC Forward Current IFmax mA 1000
Maximum Rating Junction Temperature Tjmax °C 115
Operating Temperature Range Topr °C -20 ~ +65
Storage Temperature Range Tstg °C -40 ~ +85





Explain for U535A4V133Z1



* U: Packaging technology,silicone dispensing

* 5: radiation angle,120°;

* 35: package size,3.5mm*3.5mm;

* A4: peak wavelength,360~370nm;

* V133: LED chip code, vertical chip;

* Z1: Zener chip code.





Package Dimensions (Unit: mm)



365nm Medical Flip UV LED Chip Radiation Angle 120 Degree 0



Packaging:



365nm Medical Flip UV LED Chip Radiation Angle 120 Degree 1





Application in:



365nm Medical Flip UV LED Chip Radiation Angle 120 Degree 2
