Product Details:
|
| Service Life: | > 20000hours | Dimension: | 3.55mm×3.55mm×3.20mm |
|---|---|---|---|
| Peak Wavelength: | 300nm-310nm | Packaging Technology: | Silicone Dispensing |
| Radiation Angle,: | 60° | Use In: | Skin Treatment |
| UVB LED: | With Quartz Glass Lens | Radiant Flux: | 6-12mW |
| High Light: | UVB LED Chip,310nm uv led,300nm uv led |
||

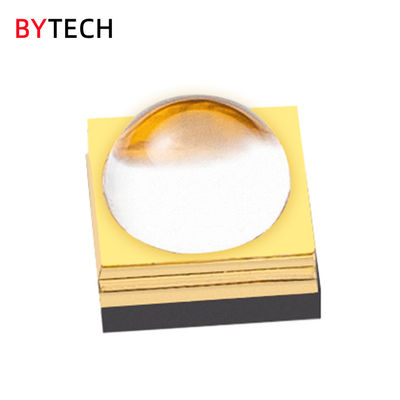

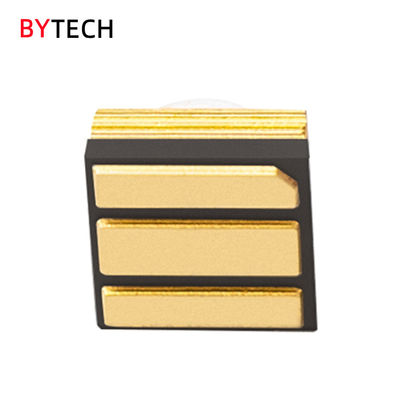

BYTECH 3535 300nm 305nm 308nm 310 nm UVB LED chip 310nm for Skin Disease Cure
Company Introduction:
Bytech is the first company in China to launch full inorganic package UV LED which is based on CMH(Ceramic,Metal,hard glass) technology platfrom. We can provide CMH series (high reliability) and U/ D series (high cost performance) products, including UVA/UVB/UVC/VCSEL. It covers curing, printing, (money) authentication, medical, disinfection/ sterilization and security industry.
Characteristics of UVB LED
1" Electrical / Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units |
Value (Continuous current IF=80mA) |
Value (Intermittent cur[1]rent IF=100mA) |
| Peak Wavelength | λp | nm | 300-310 | 300-310 |
| Radiant Flux | Φe | mW | 4~10 | 6~12 |
| Forward Voltage | VF | V | 5~9 | 5~9 |
| Thermal Resistance | Rth | °C/W | ≦20 | ≦20 |
| Spectrum Half Width | Δλ | nm | 10.5 | 10.6 |
| View Angle | 2θ1/2 | deg | 60 | 60 |
2" Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units | Value |
| Maximum Rating Forward Current | IFmax | mA | 100 |
| Maximum Rating Junction Temperature | Tjmax | °C | 120 |
| Operating Temperature Range | Topr | °C | -10 ~ +85 |
| Storage Temperature Range | Tstg | °C | -40 ~ +100 |
Product ID: U335B2F110Z4
* U: Packaging technology,silicone dispensing
* 3:radiation angle,60°
* 35: package size,3.5mm*3.5mm
* B2: peak wavelength,300~310nm
* F110: LED chip code, flip chip
* Z4: Zener chip code.
Applications
● Currency Detector
● Criminal inspection
● Skin phototherapy
● Biological Technology
Package Dimensions and Circuit
(Unit: mm)
Characteristics Diagrams
Product Application Information
