Product Details:
|
| Material: | Ceramic, Metal, Hard Glass | Dimension: | 7.0mm*7.0mm*4.4mm |
|---|---|---|---|
| Peak Wavelength: | 360nm~370nm | Protection: | Superior ESD |
| Lifespan Hours: | >20000 Hours | Module OEM: | Provide |
| Sample Provide: | Yes | ||
| High Light: | Ceramic SMD UV LED,Metal SMD UV LED,6868 lamp beads |
||

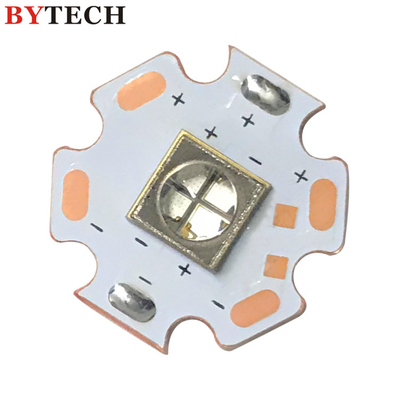

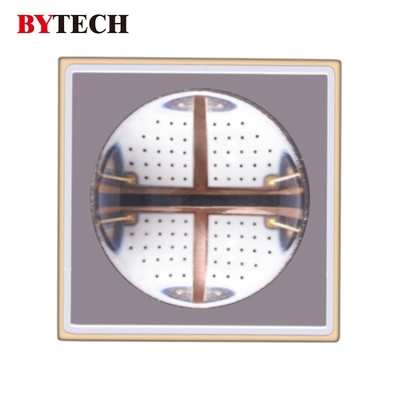

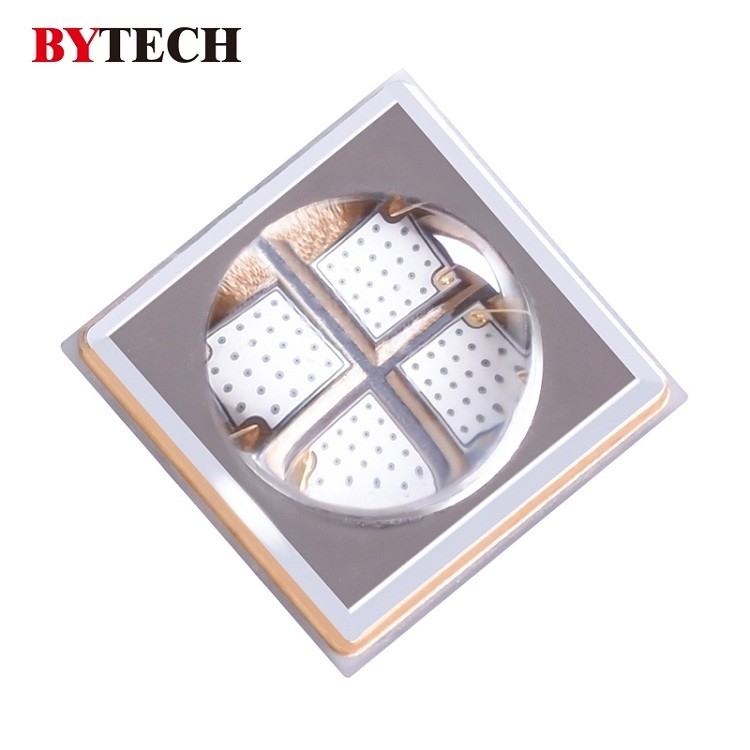

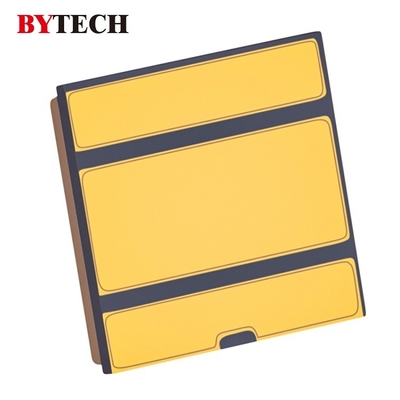

full inorganic package 365nm SMD UV LED 6868 SMD UV LED for uv curing
Introduction:
Bytech is the first company in China to launch full inorganic package UV LED which is based on CMH(Ceramic,Metal,hard glass) technology platfrom.
We can provide CMH series (high reliability) and U/ D series (high cost performance) products, including UVA/UVB/UVC/VCSEL.
It covers curing, printing, (money) authentication, medical, disinfection/ sterilization and security industry.
Characteristics of CMH268A4V145Z1V2-S4P1
1. Electrical / Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units |
CMH268A4V145Z1V2-S4P1 (IF=1500mA) |
| Peak Wavelength | λp | nm | 360-370 |
| Radiant Flux | Φe | mW | 9000-10000 |
| Forward Voltage | VF | V | 13.8-16.2 |
| Thermal Resistance | Rth | °C/W | ≤2 |
| Spectrum Half Width | Δλ | nm | 14 |
| View Angle | 2θ1/2 | deg | 60 |
2. Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units | CMH268A4V145Z1V2-S4P1 |
| DC Forward Current | IFmax | mA | 1625 |
| Maximum Rating Junction Temperature | Tjmax | °C | 125 |
| Operating Temperature Range | Topr | °C | -10 ~ +85 |
| Storage Temperature Range | Tstg | °C | -40 ~ +100 |
Package Dimensions (Unit: mm)
Packaging for goods:
Applications:
˗ Fluorescent spectroscopy
˗ Sensors and monitors
˗ Bio-analysis/detection
˗ Phototherapy
˗ UV curing
˗ Printing
˗ Coating
