Product Details:
|
| View Angle: | 120 | Dimension: | 28mm*42mm*5.3mm |
|---|---|---|---|
| Peak Wavelength: | 360-370nm | Radiant Flux: | 9-11w |
| Lifespan Hours: | >20000 Hours | Use In: | 3D Printing |
| Dimension Of Copper Substrate: | 26.8*28mm | ||
| High Light: | COB UV LED Module,DLP Printer UV LED Module,uv led chip 365nm |
||

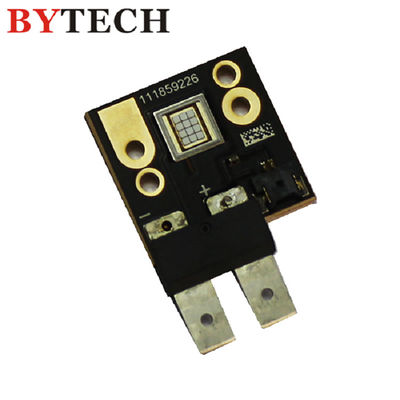

COB UV LED module for 3D DLP Printer 365nm 385nm 405nm SMD uv led
Company Introduction:
Bytech is the first company in China to launch full inorganic package UV LED which is based on CMH(Ceramic,Metal,hard glass)technology platfrom, and we has applied for 15 patents since 2013 inculding 13 authorized patents.
At moment,Our UV LED product covers wavelengths of UVA, UVB and UVC, which has been applied for offset printing, screen printing, ink-jet printing, intaglio printing, UV exposure, air purification, sterilization, 3D printing and other industries.
And we provide our customers with one-stop-shopping service, any UV LED module do you want, we can customize for you.
Characteristics of TLM2728A01
1. Electrical / Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units | Value) |
| Test current | I | A | 9.0 |
| Forward Voltage | VF | V | 3.3-4.0 |
| Peak Wavelength | λp | nm | 360~370 |
| Radiant Flux | Φe | W | 9-11 |
| Spectrum Half Width | Δλ | nm | 15-18 |
2. Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units | Value |
| Maximum Rating Forward Current | IFmax | A | 24 |
| Maximum Rating Junction Temperature | Tjmax | °C | 125 |
| Operating Temperature Range | Topr | °C | -10 ~ +85 |
| Storage Temperature Range | Tstg | °C | -40 ~ +100 |
Package Dimensions (Unit: mm)
Circuit:
Features:
● UVA LED COB module
● High thermal conductivity common cathode copper substrate package
● With ESD protection device
● Quartz glass lens
● Dimension:28mm×42mm×5.3mm
● Long operating life
● RoHS compliant
Applications:
● 3D Printing
● Curing
● Lithography
Product ID:
TLM2728A01
T: High thermal conductivity copper substrate；
L: Aluminum dam；
M: COB Module；
2728: Dimension of copper substrate 26.8*28mm；
A01: Chip peak wavelength code:360~370nm；
Production Line
