Product Details:
|
| Packaging Technology: | Silicone Dispensing | Package Size: | 3.5mm*3.5mm |
|---|---|---|---|
| Peak Wavelength: | 300~310nm | Spectrum Half Width: | 11-12nm |
| LED Chip: | Flip Chip | Radiation Angle: | 120deg |
| Radiant Flux: | 3-5mW | Emitting Color: | Purple |
| High Light: | 3535 SMD Bead Chips,365nm smd bead chips,5mW UV LED |
||

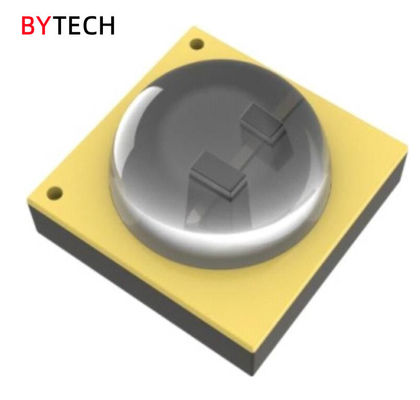

3535 365nm 385nm 395nm 405nm UV led for Curing 305nm UVB LEDS exposure
Company Introduction:
Bytech is the first company in China to launch full inorganic package UV LED which is based on CMH(Ceramic,Metal,hard glass)technology platfrom. At present,Our UV LED product cover wavelengths of UVA, UVB and UVC. And we provide our clients with one-stop-shopping service, any UV LED module do you want, we can customize for you.
Characteristics of UV LED
1. Electrical / Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units | Value |
| Peak Wavelength | λp | nm | 300-310 |
| Radiant Flux | Φe | mW | 3-5 |
| Forward Voltage | VF | V | 5-7 |
| Thermal Resistance | Rth | °C/W | ≤15 |
| Spectrum Half Width | Δλ | nm | 11-12 |
| View Angle | 2θ1/2 | deg | 120 |
2. Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units | Value |
| DC Forward Current | IFmax | mA | 40 |
| Maximum Rating Junction Temperature | Tjmax | °C | 120 |
| Operating Temperature Range | Topr | °C | -10 ~ +85 |
| Storage Temperature Range | Tstg | °C | -40 ~ +100 |
Product ID: U335B2F43Z4
U: Packaging technology,silicone dispensing
3:radiation angle,120°
35: package size,3.5mm*3.5mm
B2: peak wavelength,300~310nm
F43: LED chip code, flip chip
Z4: Zener chip code
Package Dimensions and Circuit
(Unit: mm)
Characteristics Diagrams (UVB)
