Product Details:
|
| Working Time: | >12000 Hours | Dimension: | 3.70mm×3.70mm×1.60mm |
|---|---|---|---|
| Wavelength: | 300nm-310nm | Lighting Solutions Service: | Project Installation |
| Function: | Medical Illumination Therapy | Forward Voltage: | 9V |
| Radiant Flux: | 6-12mW | LED: | With Quartz Glass Lens |
| High Light: | Treatment SMD UV LED,305nm SMD UV LED,310nm UV LED |
||

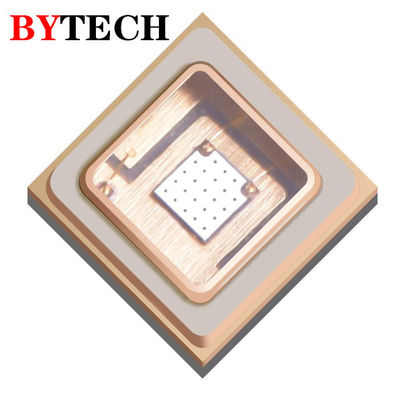

305nm SMD UV LED for medical treatment skin disease 310nm uvb led
Company :
BYTECH Electronics CO., Ltd, Chinese national high and new tech enterprise.
It is the first company in China to produce and sale the full inorganic UV LEDs, and to provide application solutions for customer.
By now, BYTECH can provide CMH series (high reliability) and U/ D series (high cost performance) products. It covers curing, printing, (money) authentication, medical, disinfection/ sterilization and security industry.
Characteristics of UV LED
* Electrical / Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units |
F49 (Continuous current IF=80mA) |
F49 (Intermittent current IF=100mA) |
| Peak Wavelength | λp | nm | 300~310 | 300~310 |
| Radiant Flux | Φe | mW | 4~10 | 6~12 |
| Forward Voltage | VF | V | 5~9 | 5~9 |
| Thermal Resistance | Rth | °C/W | ≦20 | ≦20 |
| Spectrum Half Width | Δλ | nm | 11.5 | 11.6 |
| View Angle | 2θ1/2 | deg | 120 | 120 |
* Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units | F49 |
| DC Forward Current | IFmax | mA | 100 |
| Maximum Rating Junction Temperature | Tjmax | °C | 120 |
| Operating Temperature Range | Topr | °C | -10 ~ +85 |
| Storage Temperature Range | Tstg | °C | -40 ~ +100 |
Product ID: U535B2F110Z4
U: Packaging technology, silicone dispensing
5: radiation angle,120°;
35: package size,3.5mm*3.5mm;
B2: peak wavelength,300~310nm;
F110: LED chip code, flip chip;
Z4: Zener chip code.
Package Dimensions and Circuit
(Unit: mm)
Characteristics Diagrams
