Product Details:
|
| Products Name: | Uv Cob Module | Chips Quantity: | 12 Pcs Uv Led Chips |
|---|---|---|---|
| Chips Wavelength: | 385nm | Uv Led Module Size: | 28mm×42mm×5.3mm |
| Material: | High Thermal Conductivity Copper Substrate | Dimension Of Copper Substrate: | 26.8*28mm |
| Chips Combination,: | 1 In Series 12 In Parallel | Life Time: | ＞20000hours |
| High Light: | 12pcs Cob LED Chip,385nm Cob LED Chip,2A uv cob module |
||

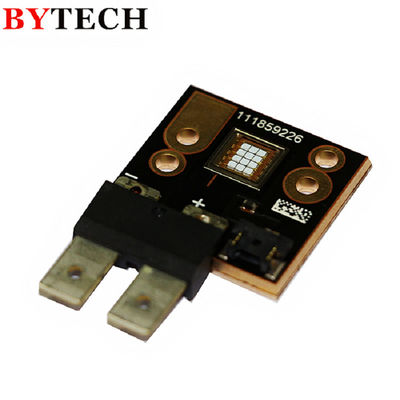

3D printer light source 12pcs chips 2A per chips 385nm cob uv led chip
Company introduction:
BYTECH Electronics CO., Ltd, Chinese national high and new tech enterprise,is a subsidiary company of Hongli Zhihui Group (stock code: 300219) .BYTECH is the first company in China to produce and sale the full inorganic UV LEDs, and to provide application solutions for customer.CMH packaging technology platform is a kind of packaging technology which adopts ceramic, metal, hard glass as packaging materials. CMH packaging technology platform originates independent intellectual property owned by BYTECH. By now, BYTECH can provide CMH series (high reliability) and U/D series (high cost performance) products, including UVA/UVB/UVC/ VCSEL. It covers curing, printing, (money) authentication, medical disinfection/ sterilization and security industry.
Features:UVA LED COB module
● High thermal conductivity common cathode
copper substrate package
● With ESD protection device
● Quartz glass lens
● Dimension:28mm×42mm×5.3mm
● Long operating life
● RoHS compliant
| Parameter | Symbol | Units | Value) |
| Test current | I | A | 9.0 |
| Forward Voltage | VF | V | 3.3-4.0 |
| Peak Wavelength | λp | nm | 360~370 |
| Radiant Flux | Φe | W | 9-11 |
| Spectrum Half Width | Δλ | nm | 15-18 |
Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units | Value |
| Maximum Rating Forward Current | IFmax | A | 24 |
| Maximum Rating Junction Temperature | Tjmax | °C | 125 |
| Operating Temperature Range | Topr | °C | -10 ~ +85 |
| Storage Temperature Range | Tstg | °C | -40 ~ +100 |
Applications:
● 3D Printing
● Curing
● Lithography
Test report:
