Product Details:
|
| Package Size: | 2.5mm*2.5mm | Use In: | Air Purification, UV Curing |
|---|---|---|---|
| Peak Wavelength: | 390-400nm | Peak Forward Current: | 1200mA |
| Radiant Flux: | 1600-2000mW | Radiation Angle: | 60° |
| Packaging Technology: | Silicone Dispensing | ||
| High Light: | 365nm Mini LED Chip,385nm Mini LED Chip,405nm UV LED |
||

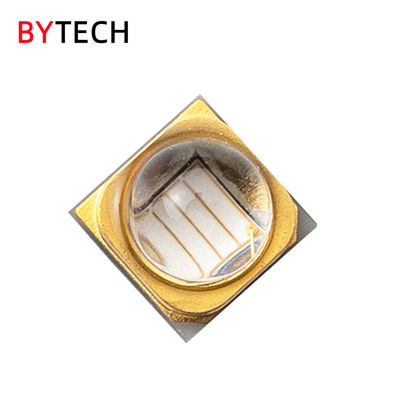

BYTECH 60 degree 365nm 385nm 395nm 405nm UV LED chip for uv curing 2525 uv
Company Introduction:
Bytech is the first company in China to launch full inorganic package UV LED which is based on CMH(Ceramic,Metal,hard glass) technology platfrom. And we has applied for 15 patents since 2013 inculding 13 authorized patents. At present, We can provide CMH series (high reliability) and U/ D series (high cost performance) products. It covers curing, printing, (money) authentication, medical, disinfection/ sterilization and security industry.
Characteristics of U325A1V107Z1
1’ Electrical / Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units | Value |
| Peak Wavelength | λp | nm | 390-400 |
| Radiant Flux | Φe | mW | 1600-2000 |
| Forward Voltage | VF | V | 3.5-4.0 |
| Thermal Resistance | Rth | °C/W | ≤3 |
| Spectrum Half Width | Δλ | nm | 10 |
| View Angle | 2θ1/2 | deg | 60 |
2’ Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units | Value |
| DC Forward Current | IFmax | mA | 1000 |
| Maximum Rating Junction Temperature | Tjmax | °C | 125 |
| Operating Temperature Range | Topr | °C | -30 ~ +85 |
| Storage Temperature Range | Tstg | °C | -40 ~ +85 |
Explain for U325A1V107Z1:
* U: Packaging technology,silicone dispensing
* 3:radiation angle,60°
* 25: package size,2.5mm*2.5mm
* A1: peak wavelength,390-400nm
* V107: LED chip code, vertical chip
* Z1: Zener chip code
Package Dimensions & Circuit
(Unit: mm)
Product Application Information
Package
Certificate
