Product Details:
|
| Lens Material: | Quartz Glass Lens | Module Dimension: | 28mm*42mm*5.3mm |
|---|---|---|---|
| Wavelength: | 405nm | Radiant Flux: | 13-18w |
| Lifespan Hours: | >20000 Hours | Use In: | 3D Printer |
| Sample Order: | Accept | Light Color: | Violet |
| High Light: | 405nm COB LED Module,Printer COB LED Module,BYTECH led module 20w |
||

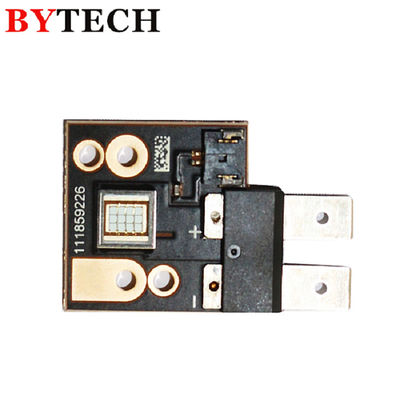

BYTECH TLM2728A0 13W to 18W 405nm COB LED module for DLP 3D Printer
Company Introduction:
Bytech is the first company in China to launch full inorganic package UV LED which is based on CMH(Ceramic,Metal,hard glass) technology platfrom.
And we has applied for 15 patents since 2013 inculding 13 authorized patents.
At present, We can provide CMH series (high reliability) and U/ D series (high cost performance) products.
It covers curing, printing, (money) authentication, medical, disinfection/ sterilization and security industry.
Characteristics of TLM2728A0V221Z1A1-R9-S1P12
1' Electrical / Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units | Value) |
| Test current | I | A | 9.0 |
| Forward Voltage | VF | V | 3.3-4.0 |
| Peak Wavelength | λp | nm | 400~410 |
| Radiant Flux | Φe | W | 13-18 |
| Spectrum Half Width | Δλ | nm | 15-18 |
2' Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units | Value |
| Maximum Rating Forward Current | IFmax | A | 24 |
| Maximum Rating Junction Temperature | Tjmax | °C | 125 |
| Operating Temperature Range | Topr | °C | -20 ~ +65 |
| Storage Temperature Range | Tstg | °C | -40 ~ +85 |
Package Dimensions (Unit: mm)
Circuit:
Applications:
● 3D Printing
● Curing
● Lithography
FAQ
Q1: Are you a factory or dealer?
A1: We are a real and professional manufacturer in UV LED.
Q2: What products do you main business?
A2: We are Specialized in full inorganic package UV LED and UV LED module.
Q3: How about your quality?
A3: Use top quality material to make sure stable quality. Every product passed aging test well then delivery to every client.
Q4: Can you offer customized design and manufacturing?
A4: Yes, we offer customized design and manufacturing. We offer free-of-charge PCB design and electrical and optical test. All our LED modules are customized designs for customers from all over the world.
