Product Details:
|
| View Angle: | 45° | Dimension: | 3.70mm*3.70mm*2.67mm |
|---|---|---|---|
| Peak Wavelength: | 410-420nm | Radiant Flux: | 1200-1600mW |
| Thermal Resistance: | 5.0 °C/W | Use In: | UV Curing |
| Forward Voltage: | 3.4~4.2V | Package Size: | 3.5mm*3.5mm |
| High Light: | 415nm SMD UV LED,Curing SMD UV LED,uv led 3535 |
||

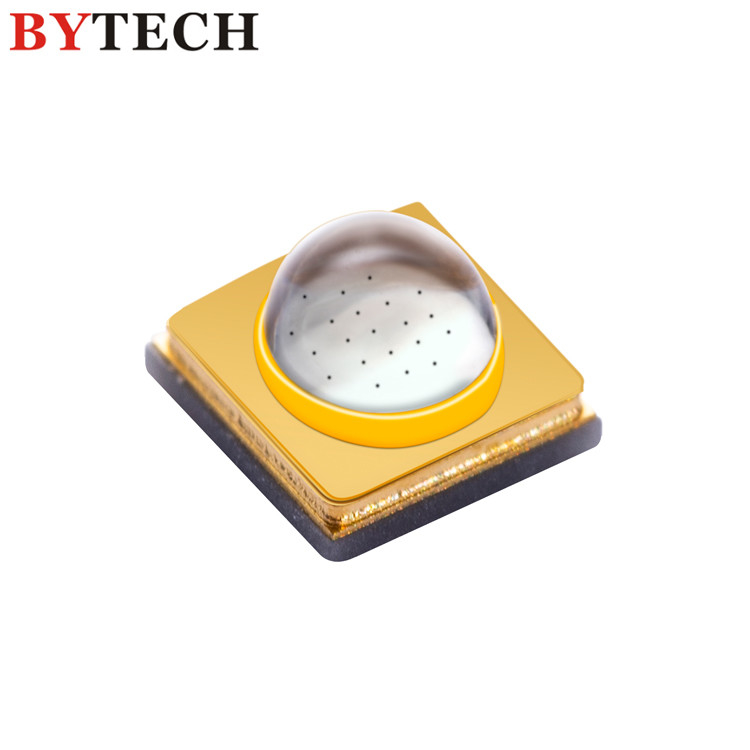

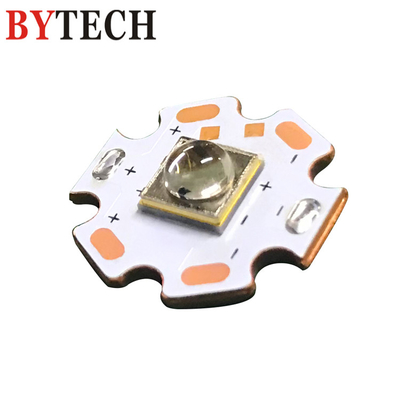

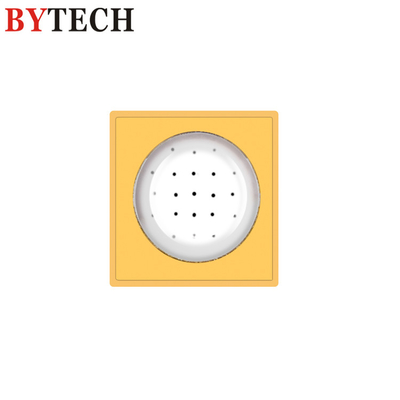

BYTECH 3535 Full Inorganic package 415nm SMD UV LED for UV curing
Company Introduction:
Bytech is the first company in China to launch full inorganic package UV LED which is based on CMH(Ceramic,Metal,hard glass) technology platfrom. And we has applied for 15 patents since 2013 inculding 13 authorized patents. At present, We can provide CMH series (high reliability) and U/ D series (high cost performance) products. It covers curing, printing, (money) authentication, medical, disinfection/ sterilization and security industry.
Characteristics of CMH235AAV123Z1
* Electrical / Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units | Value |
| Peak Wavelength | λp | nm | 410-420 |
| Radiant Flux | Φe | mW | 1200~1600 |
| Forward Voltage | VF | V | 3.4~4.2 |
| Thermal Resistance | Rth | °C/W | 5.0 |
| Spectrum Half Width | Δλ | nm | 18 |
| View Angle | 2θ1/2 | deg | 45 |
* Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units | Value |
| DC Forward Current | IFmax | mA | 1200 |
| Maximum Rating Junction Temperature | Tjmax | °C | 125 |
| Operating Temperature Range | Topr | °C | -40 ~ +85 |
| Storage Temperature Range | Tstg | °C | -40 ~ +100 |

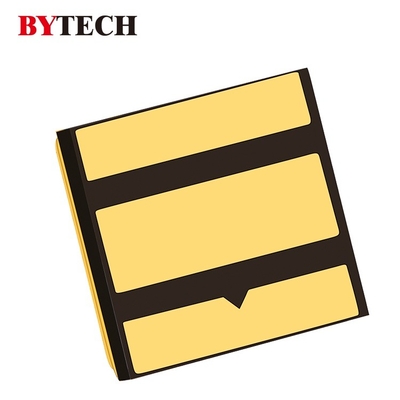

Package Dimensions & Circuit
(Unit: mm):
Ranks (IF=1000mA, Ta=25℃, RH=40%)
Product Application Information
Applications
˗ Fluorescent spectroscopy
˗ Sensors and monitors
˗ Bio-analysis/detection
˗ Phototherapy
˗ UV curing
˗ Printing
˗ Coating
