Product Details:
|
| Dimension: | 7.0mm*7.0mm*3.77mm | Viewing Angle: | 60 Degree |
|---|---|---|---|
| Peak Wavelength: | 400-410nm | Radiant Flux: | 6W-8W |
| Operating Temperature Range: | -40 ~ +65 | Applications: | Fluorescent Spectroscopy, Phototherapy , UV Curing, Air Purification |
| Circuit: | S4P1 | Sample Provide: | Yes |
| High Light: | 8W COB UV LED,405nm COB UV LED,BYTECH 12v cob led chip |
||

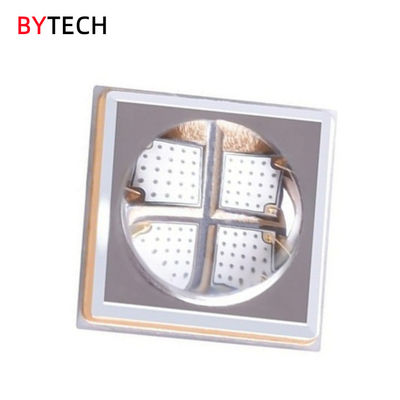

BYTECH CMH268A0V128Z1-S4P1 6W to 8W 405nm COB UV LED for 3D printing, exposure
Company Introduction:
Bytech is the first company in China to launch full inorganic package UV LED which is based on CMH(Ceramic,Metal,hard glass) technology platfrom. And we has applied for 15 patents since 2013 inculding 13 authorized patents. At present, We can provide CMH series (high reliability) and U/ D series (high cost performance) products. It covers curing, printing, (money) authentication, medical, disinfection/ sterilization and security industry.
Characteristics of CMH268A0V128Z1-S4P1
1' Electrical / Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units |
CMH268A0V128Z1-S4P1 (IF=1000mA) |
| Peak Wavelength | λp | nm | 400-410 |
| Radiant Flux | Φe | mW | 6000~8000 |
| Forward Voltage | VF | V | 14.0~15.2 |
| Thermal Resistance | Rth | °C/W | ≤2 |
| Spectrum Half Width | Δλ | nm | 16 |
| View Angle | 2θ1/2 | deg | 60 |
2' Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units | Value |
| DC Forward Current | IFmax | mA | 1200 |
| Maximum Rating Junction Temperature | Tjmax | °C | 125 |
| Operating Temperature Range | Topr | °C | -40 ~ +65 |
| Storage Temperature Range | Tstg | °C | -40 ~ +85 |
Features
● CMH real inorganic package
● Dimension: 7.0×7.0mm×3.77mm
● Long operating life
● High reliability
● Superior ESD protection
● RoHS compliant
Package Dimensions & Circuit
(Unit: mm):
Characteristics Diagrams
Product Application Information
Why You Choose Bytech
1, Partners in the Workplace, A list of outstanding organizations we have teamed with to help building a successful quality controlling program.
2, Our UV LED are sold to reseller professionals in over 50 countries worldwide for years.
3, All of our UV LED made fresh within one month of your order, and has a two year warranty.
4, UV LED in the China in accordance to strict industry regulations.
5, All UV LED are subject to continuous laboratory quality testing.
6, We offer top quality light fixtures for prices well below the market standard.
