Product Details:
|
LED: | With Quartz Glass Lens | Radiation Angle: | 120 Degree |
---|---|---|---|
Peak Wavelength: | 250~260nm, 390~400nm | Package Size: | 3.3mm*3.3mm |
Operating Temperature Range: | -40 ~ +65℃ | Applications: | Sterilization, Water / Air Purification, Fluorescent Spectroscopy |
Chip Quantity: | Two LED Chips | Chip: | Flip Chip |
High Light: | BYTECH COB UV LED,255nm COB UV LED,395nm led cob uv |

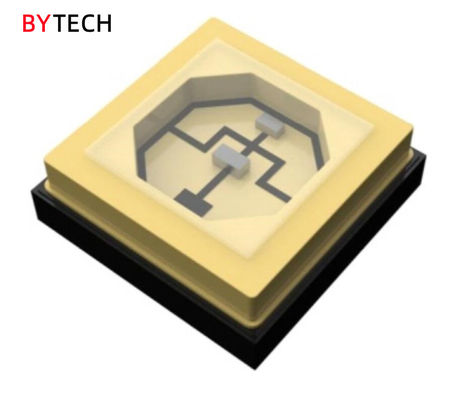

BYTECH two chips 395nm and 255nm COB UV LED for Air purification
Company Introduction:
Bytech is the first company in China to launch full inorganic package UV LED which is based on CMH(Ceramic,Metal,hard glass)technology platfrom, and we has applied for 15 patents since 2013 inculding 13 authorized patents.
At present,Our UV LED product cover wavelengths of UVA, UVB and UVC, which has been applied for offset printing, screen printing, ink-jet printing, intaglio printing, UV exposure, air purification, sterilization, 3D printing and other industries. And we provide our clients with one-stop-shopping service, any UV LED module do you want, we can customize for you.
Characteristics of D533C0F65A1F91Z30
* Electrical / Optical Characteristics (Ta=25℃, RH=40%)
Parameter | Symbol | Units |
F65 (Continuous current IF=80mA) |
F65 (Intermittent cur[1]rent IF=100mA |
F91 (Continuous current IF=60mA) |
Peak Wavelength | λp | nm | 250~260 | 250~260 | 390~400 |
Radiant Flux | Φe | mW | 4~8 | 6~10 | 50~80 |
Forward Voltage | VF | V | 5.0~9.0 | 5.0~9.0 | 3.0~4.0 |
Thermal Resistance | Rth | °C/W | ≦20 | ≦20 | ≦20 |
Spectrum Half Width | Δλ | nm | 10.5 | 10.5 | 11.5 |
View Angle | 2θ1/2 | deg | 120 | 120 | 120 |
* Absolute Maximum Ratings (Ta=25°C, RH=40%)
Parameter | Symbol | Units | F65 | F91 |
Maximum Rating Forward Current | IFmax | mA | 100 | 90 |
Maximum Rating Junction Temperature | Tjmax | °C | 85 | 130 |
Operating Temperature Range | Topr | °C | -40 ~ +60 | -40 ~ +60 |
Storage Temperature Range | Tstg | °C | -40 ~ +85 | -40 ~ +85 |
Product ID: D533C0F65A1F91Z30
● D: two LED chips
● 5: radiation angle,120°;
● 33: package size,3.3mm*3.3mm;
● C0: peak wavelength,250~260nm;
● F65: LED chip code, flip chip;
● A1: peak wavelength,390~400nm;
● F91:LED chip code, flip chip;
● Z30: Zener chip code
Package Dimensions & Circuit
(Unit: mm):
Characteristics Diagrams
Product Application Information
