Product Details:
|
| Dimension: | 3.35mm*3.35mm*1.55mm | View Angle: | 120 Degree |
|---|---|---|---|
| Peak Wavelength: | 250~260nm | Radiant Flux: | 6~10mW |
| Operating Temperature Range: | -40 ~ +65℃ | Applications: | Sterilization And Disinfection |
| Chip Quantity: | Two LED Chips | Chip: | Flip Chip |
| High Light: | Sterilization UV LED Chip,Germicidal UV LED Chip,Deep UV LED 255nm |
||

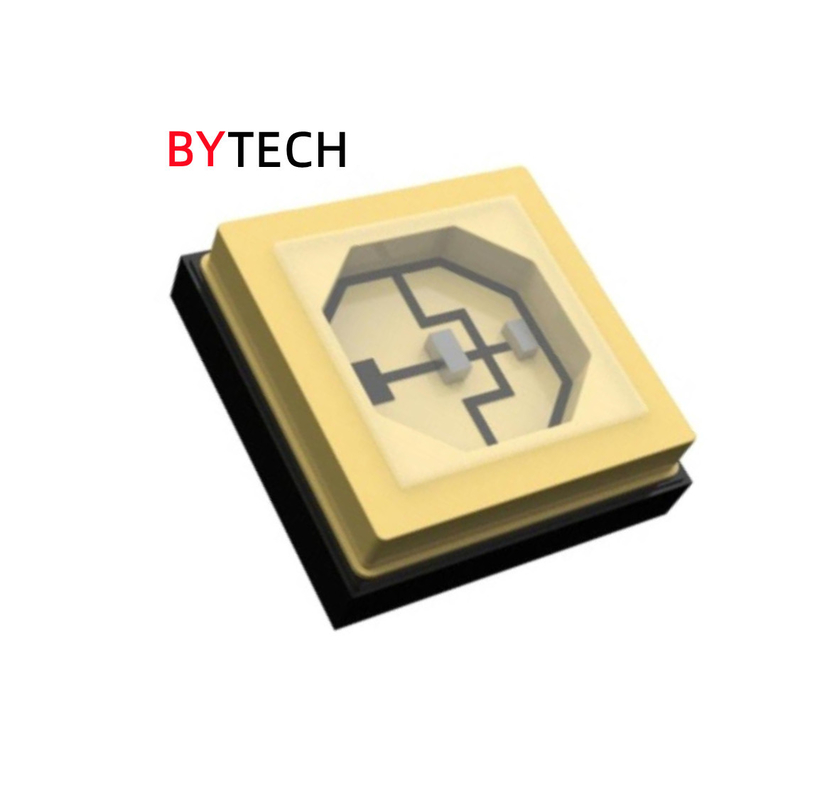

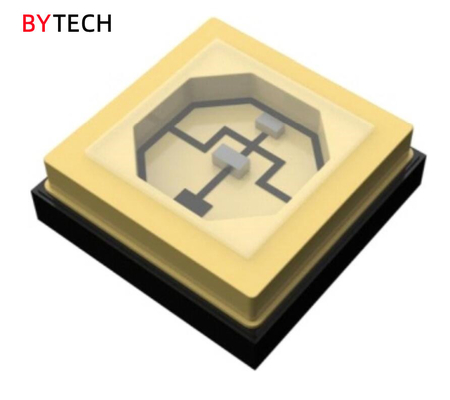

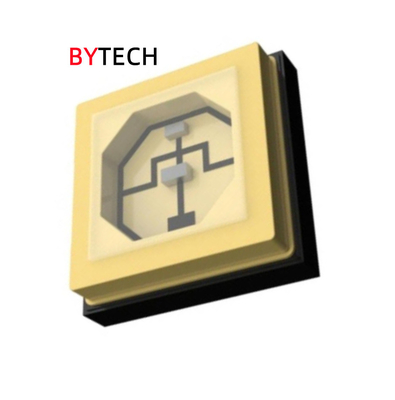

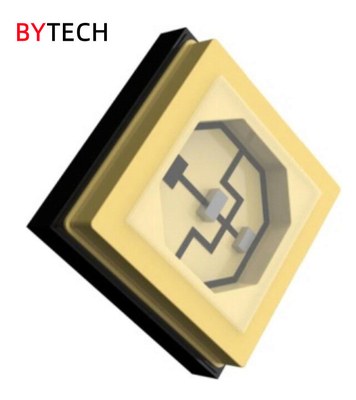

BYTECH Germicidal UVC LED 255nm 254nm 260nm deep uv led chip for sterilization
Company Introduction:
Bytech is the first company in China to launch full inorganic package UV LED, and CMH (Ceramic,Metal,hard glass) technology is a independent intellectual property owned by BYTECH.
At present,Our UV LED product cover wavelengths of UVA, UVB and UVC, which has been applied for offset printing, screen printing, ink-jet printing, intaglio printing, UV exposure, air purification, sterilization, 3D printing and other industries.
Characteristics of D533C0F65A1F91Z30
1, Electrical / Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units |
F65 (Continuous current IF=80mA) |
F65 (Intermittent cur[1]rent IF=100mA |
F91 (Continuous current IF=60mA) |
| Peak Wavelength | λp | nm | 250~260 | 250~260 | 390~400 |
| Radiant Flux | Φe | mW | 4~8 | 6~10 | 50~80 |
| Forward Voltage | VF | V | 5.0~9.0 | 5.0~9.0 | 3.0~4.0 |
| Thermal Resistance | Rth | °C/W | ≦20 | ≦20 | ≦20 |
| Spectrum Half Width | Δλ | nm | 10.5 | 10.5 | 11.5 |
| View Angle | 2θ1/2 | deg | 120 | 120 | 120 |
2, Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units | F65 | F91 |
| Maximum Rating Forward Current | IFmax | mA | 100 | 90 |
| Maximum Rating Junction Temperature | Tjmax | °C | 85 | 130 |
| Operating Temperature Range | Topr | °C | -40 ~ +60 | -40 ~ +60 |
| Storage Temperature Range | Tstg | °C | -40 ~ +85 | -40 ~ +85 |
Product ID: D533C0F65A1F91Z30
● D: two LED chips
● 5: radiation angle,120°;
● 33: package size,3.3mm*3.3mm;
● C0: peak wavelength,250~260nm;
● F65: LED chip code, flip chip;
● A1: peak wavelength,390~400nm;
● F91:LED chip code, flip chip;
● Z30: Zener chip code
Package Dimensions & Circuit
(Unit: mm):
Characteristics Diagrams
Production Line
