Product Details:
|
Working Time: | >20000 Hours | Radiant Flux: | 6~12mW |
---|---|---|---|
Peak Wavelength: | 300nm-310nm | Chip: | Flip Chip |
Applications: | Currency Detector, Criminal Inspection , Skin Therapy , Biological Technology | View Angle: | 120 Degree |
Forward Voltage: | 5-9V | Junction Temperature: | 120℃ |
High Light: | 305nm UV LED Chip,310nm UV LED Chip,BYTECH UVB LED Chip |

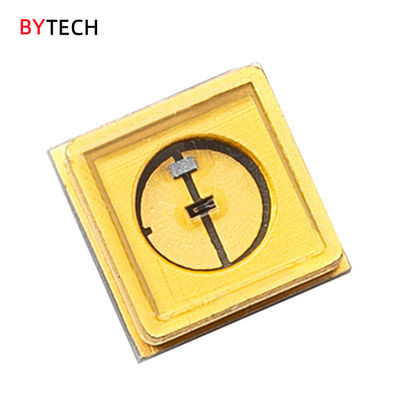

BYTECH 305nm 310nm UVB LED 300nm to 310nm uv led chip for Currency Detector
Company Introduction:
Bytech is the first company in China to launch full inorganic package UV LED which is based on CMH(Ceramic,Metal,hard glass)technology platfrom, and we has applied for 15 patents since 2013 inculding 13 authorized patents.
At present,Our UV LED product cover wavelengths of UVA, UVB and UVC, which has been applied for offset printing, screen printing, ink-jet printing, intaglio printing, UV exposure, air purification, sterilization, 3D printing and other industries. And we provide our clients with one-stop-shopping service, any UV LED module do you want, we can customize for you.
Characteristics of UVB LED
# Electrical / Optical Characteristics (Ta=25℃, RH=40%)
Parameter | Symbol | Units |
F49 (Continuous current IF=80mA) |
F49 (Intermittent current IF=100mA) |
Peak Wavelength | λp | nm | 300~310 | 300~310 |
Radiant Flux | Φe | mW | 4~10 | 6~12 |
Forward Voltage | VF | V | 5~9 | 5~9 |
Thermal Resistance | Rth | °C/W | ≦20 | ≦20 |
Spectrum Half Width | Δλ | nm | 11.5 | 11.6 |
View Angle | 2θ1/2 | deg | 120 | 120 |
# Absolute Maximum Ratings (Ta=25°C, RH=40%)
Parameter | Symbol | Units | F49 |
DC Forward Current | IFmax | mA | 100 |
Maximum Rating Junction Temperature | Tjmax | °C | 120 |
Operating Temperature Range | Topr | °C | -10 ~ +85 |
Storage Temperature Range | Tstg | °C | -40 ~ +100 |
Features
● UVC LED with quartz glass lens
● Dimension: 3.70mm×3.70mm×1.60mm
● Long operating life
● Deep ultraviolet
● High reliability
● Superior ESD protection
● RoHS compliant
Characteristics Diagrams
Product Application Information
Package
Production Line
