Product Details:
|
| Service Life: | > 20000hours | Dimension: | 3.75mm*3.75mm*1.47mm |
|---|---|---|---|
| Peak Wavelength: | 360~370nm | Packaging Technology: | Silicone Dispensing |
| Radiation Angle,: | 120° | Use In: | UV Curing |
| UVA LED: | With Quartz Glass Lens | Radiant Flux: | 1400~1800mW |
| High Light: | 1.8w UV LED Chip,UV LED Chip 365nm,Smd 3535 Led |
||

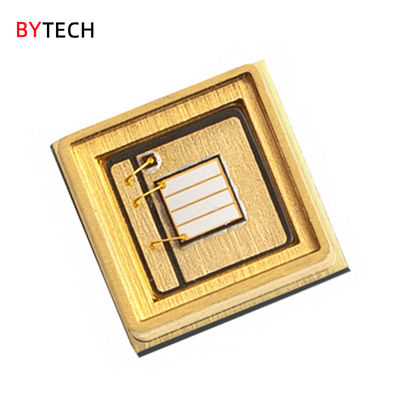

BYTECH 1.8w uv led chip 365nm smd 3535 led for laser pointer 365nm uv led torch
Company Introduction:
Bytech is the first company in China to launch full inorganic package UV LED which is based on CMH(Ceramic,Metal,hard glass) technology platfrom. And we has applied for 15 patents since 2013 inculding 13 authorized patents. At present, We can provide CMH series (high reliability) and U/ D series (high cost performance) products. It covers curing, printing, (money) authentication, medical, disinfection/ sterilization and security industry.
Characteristics of UVB LED
1" Electrical / Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units | Value |
| Peak Wavelength | λp | nm | 360-370 |
| Radiant Flux | Φe | mW | 1400~1800 |
| Forward Voltage | VF | V | 3.5~4.5 |
| Thermal Resistance | Rth | °C/W | 5 |
| Spectrum Half Width | Δλ | nm | 9 |
| View Angle | 2θ1/2 | deg | 120 |
2" Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units | Value |
| DC Forward Current | IFmax | mA | 1000 |
| Maximum Rating Junction Temperature | Tjmax | °C | 115 |
| Operating Temperature Range | Topr | °C | -20 ~ +65 |
| Storage Temperature Range | Tstg | °C | -40 ~ +85 |
Product ID: U535A4V133Z1
● U: Packaging technology,silicone dispensing
● 5: radiation angle,120°;
● 35: package size,3.5mm*3.5mm;
● A4: peak wavelength,360~370nm;
● V133: LED chip code, vertical chip;
● Z1: Zener chip code.
Package Dimensions and Circuit
(Unit: mm)
Product Application Information
Certificates
