Product Details:
|
| Out Power: | 1400mW-1800mW | Peak Wavelength: | 360nm~370nm |
|---|---|---|---|
| Dimension: | 2.65mm*2.65mm*2.00mm | Material: | With Quartz Glass Lens |
| Lifespan Hours: | >20000 Hours | Forward Voltage: | 3.5-4.2V |
| Module OEM: | Provide | Sample Provide: | Yes |
| High Light: | 1800mW UV LED Chip,395nm UV LED Chip |
||

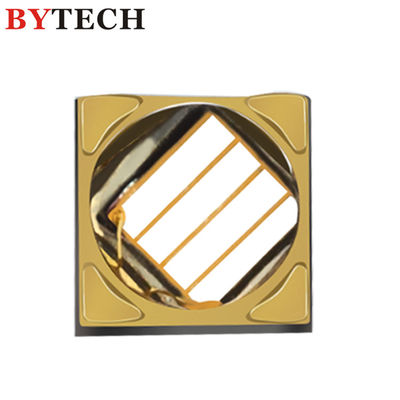

BYTECH 2525 UVA 365nm 385nm 395nm 405nm UVB 308nm UVC 255nm 265nm 275nm UV LED CHIP
Characteristics of UV LED:
1. Electrical / Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units | U325A4V133Z1 (365nm) |
U325A2V199Z1 (385nm) |
U325A1V200Z1 (395nm) |
U325A0V201Z1 (405nm) |
U325B2F110Z4 (308nm) |
U525C2F41Z4 (275nm) |
| Forward Current | IF | mA | 1000 | 1000 | 1000 | 1000 | 80 | 50 |
| Peak Wavelength | λp | nm | 360-370 | 380-390 | 390-400 | 400-410 | 300-310 | 270-280 |
| Radiant Flux | Φe | mW | 1400-1800 | 1600-2000 | 1600-2000 | 1600-2000 | 4-10 | 3-6 |
| Forward Voltage | VF | V | 3.5-4.2 | 3.5-4.0 | 3.5-4.0 | 3.5-4.0 | 5-9 | 5-8 |
| Inverse voltage | Vr | V | 5 | 5 | 5 | 5 | 5 | 5 |
| Thermal Resistance | Rth | °C/W | ≤3 | ≤3 | ≤3 | ≤3 | ≤20 | ≤20 |
| Spectrum Half Width | Δλ | nm | 12 | 12 | 12 | 12 | 11.5 | 9.5 |
| View Angle | 2θ1/2 | deg | 60 | 60 | 60 | 60 | 60 | 120 |
2. Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units | Value |
| Maximum DC Forward Current | IFmax | mA | 1000 |
| Maximum Rating Junction Temperature | Tjmax | °C | 115 |
| Operating Temperature Range | Topr | °C | -20 ~ +65 |
| Storage Temperature Range | Tstg | °C | -40 ~ +85 |
Explain for U325A4V133Z1:
U: Packaging technology, silicone dispensing
3: Radiation angle, 60°
25: Package size,2.5mm*2.5mm
A4: Peak wavelength, 360-370nm
V133: LED chip code, vertical chip
Z1: Zener chip code
Features:
● UVA LED with quartz glass lens
● Dimension: 2.65mm×2.65mm×2.00mm
● High reliability
● Superior ESD protection
● RoHS compliant
● Customised the uv led module ,the optical power tensity can be reach 33w/cm2.
2525 Module--higher optical power density:
Package Dimensions (Unit: mm):
U325 Series-2525/60 Degree/Adhesive Quartz glass ball
Note:The polarity of the UV LED pacakged by the hole board chip is opposite to that of the normal vertical chip!
U225 Series-2525/45degree/Adhesive Quartz glass ball ;U425 Series-2525/90degree/Adhesive Quartz glass ball
Color consistency compared with other vendors' products:
Due to chip packaging differences,UVLED chips on the market emit different colors of light visible to the naked eye when lit up,Such as yellow, blue and purple.The shorter the band, the more pronounced the phenomenon.
The diagram below:
|
|
|
|
Blue |
Violet |
Yellow |
There is no direct relationship between color difference and curing effect,But it will affect the human body's senses and the appearance level of the product,And color consistency is not good.At present, BYTECH package scheme can solve this problem.
|
S Company 365nm products |
BYTECH 365nm products |
|
|
Reliability test:
| Item | Experimental project |
Experiment results |
Decide |
| 1 | The ball head pushes and pulls | Push＞5000gf,Pull＞400gf | ok |
| 2 | Reflow soldering | The colloid did not change color obviously and the ball head did not fall off | ok |
| 3 | Red ink immersion |
Non-filtration |
ok |
| 4 | Correlation test | The colloid did not change color obviously and the ball head did not fall off | ok |
| 5 |
Common tempertature aging line |
U325A2V106Z1(1008H,98.0%);CMH235A2V106Z1V2(1008H,98.0%) | ok |
Packaging:
Applications:
● UV curing
● Fluorescence spectrum analysis
● Air purification
● Medical
Company Introduction:
Bytech is the first company in China to launch full inorganic package UV LED which is based on CMH (Ceramic, Metal, hard glass) technology platform, and we have applied for 15 patents since 2013 including 13 authorized patents.
At present, Our UV LED product cover wavelengths of UVA, UVB and UVC, which has been applied for offset printing, screen printing, ink-jet printing, intaglio printing, UV exposure, air purification, sterilization, 3D printing and other industries. And we provide our clients with one-stop-shopping service, any UV LED module do you want, we can customize for you.
Production Line:
FAQ:
Q1: Are you a factory or dealer?
A1: We are a real and professional manufacturer in UV LED.
Q2: What products do you main business?
A2: We are Specialized in full inorganic package UV LED and UV LED module.
Q3: How about your quality?
A3: Use top quality material to make sure stable quality. Every product passed aging test well then delivery to every client.
Q4: Can you offer customized design and manufacturing?
A4: Yes, we offer customized design and manufacturing. We offer free-of-charge PCB design and electrical and optical test. All our LED modules are customized designs for customers from all over the world.
Q5: How to make a customized LED module?
A5: Firstly, we need to confirm customer requirement through communication.
Secondly, we create the LED layout drawing and hole bitmap for confirmation
Thirdly, we make and test the sample board
Fourthly, we perform electronic and optical property parameters measurement
Fifthly, we go through reliability test.
Sixthly, we package and deliver the order package after getting Acceptance of Evaluation from Technical department.
Any question ,pls feel free to contact! Welcome to inquiry!
