Product Details:
|
| Dimension: | 2.65mm*2.65mm*2mm | Application: | Fluorescence Spectrum Analysis |
|---|---|---|---|
| Peak Wavelength: | 385nm | Voltage: | 3.5-4V |
| Radiant Flux: | 1600-2000mW | Radiation Angle: | 60° |
| Packaging Technology: | Silicone Dispensing |

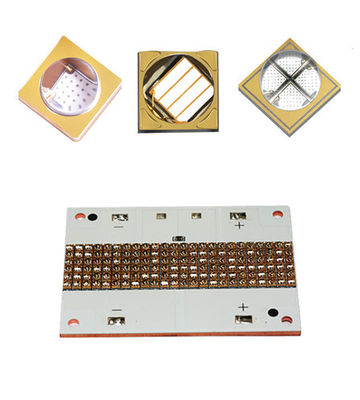

UV curing light module 365nm 385nm 395nm 405nm UV LED U325A2V106Z1
Characteristics of U325A2V106Z1
1, Electrical / Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units | Value |
| Peak Wavelength | λp | nm | 380-390 |
| Radiant Flux | Φe | mW | 1600-2000 |
| Forward Voltage | VF | V | 3.5-4.0 |
| Thermal Resistance | Rth | °C/W | ≤3 |
| Spectrum Half Width | Δλ | nm | 10 |
| View Angle | 2θ1/2 | deg | 60 |
2, Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units | Value |
| DC Forward Current | IFmax | mA | 1000 |
| Maximum Rating Junction Temperature | Tjmax | °C | 125 |
| Operating Temperature Range | Topr | °C | -30 ~ +85 |
| Storage Temperature Range | Tstg | °C | -40 ~ +85 |
Explain for U325A2V106Z1:
● U: Packaging technology,silicone dispensing
● 3:radiation angle,60°
● 25: package size,2.5mm*2.5mm
● A1: peak wavelength,380-390nm
● V107: LED chip code, vertical chip
● Z1: Zener chip code
FAQ
Q1: Do you supply OEM,ODM service?
A1: YES, absolutely it can be realized.
Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs, including products and quantity, our professional team will reply you very soon (mostly within few hours).
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, and it can be calculated.
Q6: How to place an order?
A6: If you want to place an order, Please feel free to send us an inquiry email, we shall reply you within 24hours(working day)
Company Introduction:
BYTECH Electronics CO., Ltd, Chinese national high and new tech enterprise.
It is the first company in China to produce and sale the full inorganic UV LEDs, and to provide application solutions for customer.
CMH packaging technology platform is a kind of packaging technology which adopts ceramic, metal, hard glass as packaging materials, and it is independent intellectual property owned by BYTECH.
By now, BYTECH can provide CMH series (high reliability) and U/ D series (high cost performance) products.
It covers curing, printing, (money) authentication, medical, disinfection/ sterilization and security industry.
