4W 2525 UVA LEDS Higher Optical Power Intensity With Patents

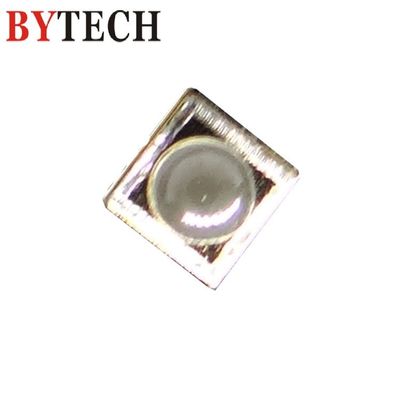

Large Image : 4W 2525 UVA LEDS Higher Optical Power Intensity With Patents

Product Details:

Place of Origin:	GuangZhou，China
Brand Name:	BYTECH
Certification:	ROHS
Model Number:	U325A1V107Z1

Payment & Shipping Terms:

Packaging Details:	45x40x25cm for 3 rolls, 2K pcs/one roll.
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100k/month

Contact Now

4W 2525 UVA LEDS Higher Optical Power Intensity With Patents

Description

Products Name::	Ultraviolet Light-emitting Diode	Emitting Color:	Ultraviolet
Electronic Power:	4w	Optical Power:	1.6-2w
Chip Material:	InGaN	Viewing Angle(°):	60
Forward Voltage:	3.5-4.0	Wavelength:	390-400
Application:	UV Curing;Fluorescence Spectrum Analysis;Air Purification	Warranty:	10000hours
High Light:	2525 UVA LEDS , InGaN UVA LEDS , 4w Uv Led

higher optical power intensity 2525 smaller size uv led with the patents

Characteristics of UV LED:

Parameter	Symbol	Units	U325A1V107Z1 (IF=1000mA)
Peak Wavelength [1]	λp	nm	390~400
Radiant Flux [2]	Φe [3]	mW	1600~2000
Forward Voltage [4]	Vf	V	3.5~4.0
Thermal Resistance [5]	Rth	°C/W	≤3
Spectrum Half Width	Δλ	nm	10
View Angle	2θ1/2	deg	60

Notes:

[1] Peak wavelength measurement tolerance:±3nm

[2] Radiant flux measurement tolerance:±10%

[3] Φe is the total radiant flux as measured with an integrated sphere

[4] Forward voltage measurement tolerance:±3%

[5] Rth is the thermal resistance between junction to substrate.

Features:

● UVA LED with quartz glass lens

● Dimension 2.65mm×2.65mm×2mm

● Long operating life

● High reliability

● Superior ESD protection

● RoHS compliant

Applications:

● UV curing

● Fluorescence spectrum analysis

● Air purification

Package Dimensions (Unit: mm):

Tag:

3535 UVA LEDS,

2525 UVA LEDs,

UVA UVC LED
