Product Details:
|
| Packaging Method: | Full Inorganic | Package Size: | 3.5*3.5 Mm |
|---|---|---|---|
| Peak Wavelength: | 390nm, 395nm, 400nm | OEM: | Provide |
| Sample: | Free | Lifespan: | >30000 Hours |
| Protection: | Superior ESD | Forward Voltage: | 3.4-4.0 V |
| High Light: | 3535 UVA LEDS,385nm UVA LEDS,405nm High Power LED |
||

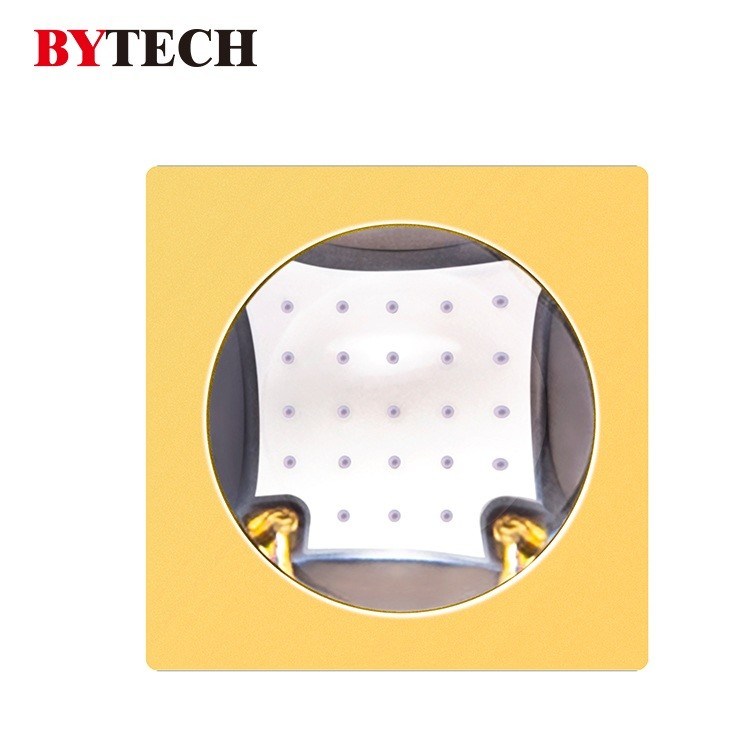

High power 3535 385nm UVA LEDS for printing, 365nm 375nm 395nm 405nm uva leds
Company Profile:
Bytech is the first company in China to launch full inorganic package UV LED which is based on CMH(Ceramic,Metal,hard glass)technology platfrom. At present,Our UV LED product cover wavelengths of UVA, UVB and UVC, which has been applied for offset printing, screen printing, ink-jet printing, intaglio printing, UV exposure, air purification, sterilization, 3D printing and other industries.
Characteristics of UVA LED
1,Electrical / Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units | CMH235A2V106Z1V2 |
| Peak Wavelength | λp | nm | 380-390 |
| Radiant Flux | Φe | mW | 1400-2000 |
| Forward Voltage | VF | V | 3.4-4.0 |
| Thermal Resistance | Rth | °C/W | ≤2 |
| Spectrum Half Width | Δλ | nm | 12 |
| View Angle | 2θ1/2 | deg | 60 |
2,Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units | CMH235A2V106Z1V2 |
| DC Forward Current | IFmax | mA | 1200 |
| Maximum Rating Junction Temperature | Tjmax | °C | 125 |
| Operating Temperature Range | Topr | °C | -10 ~ +65 |
| Storage Temperature Range | Tstg | °C | -40 ~ +85 |
Production Line:
Packaging:
Application:
FAQ
Q1: Are you a factory or dealer?
A1: We are a real and professional manufacturer in UV LED.
Q2: What products do you main business?
A2: We are Specialized in full inorganic package UV LED and UV LED module.
Q3: How about your quality?
A3: Use top quality material to make sure stable quality. Every product passed aging test well then delivery to every client.
Q4: Can you offer customized design and manufacturing?
A4: Yes, we offer customized design and manufacturing. We offer free-of-charge PCB design and electrical and optical test. All our LED modules are customized designs for customers from all over the world.
Q5: How to make a customized LED module?
A5: Firstly, we need to confirm customer requirement through communication.
Secondly, we create the LED layout drawing and hole bitmap for confirmation
Thirdly, we make and test the sample board
Fourthly, we perform electronic and optical property parameters measurement
Fifthly, we go through reliability test.
Sixthly, we package and deliver the order package after getting Acceptance of Evaluation from Technical department.
