Product Details:
|
| Material: | Ceramic, Metal, Hard Glass | Dimension: | 3.70mm*3.70mm*2.5mm |
|---|---|---|---|
| Peak Wavelength: | 360nm~370nm | Use In: | UV Curing, Printing, Purification |
| Protection: | Superior ESD | Lifespan Hours: | >20000 Hours |
| Module OEM: | Provide | Sample Provide: | Yes |
| High Light: | 365nm UV LED 3535,ESD UV LED 3535,Rgbw LED Chip |
||

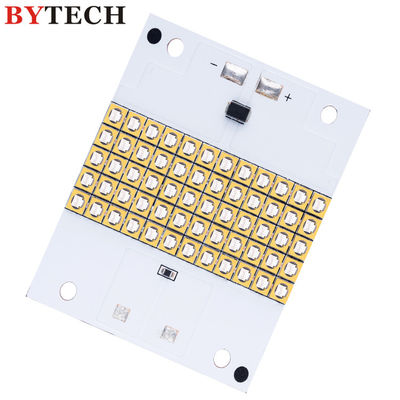

365nm UVA LED for glue curing, exposure machine, air purification uva led module
Introduction:
Bytech is the first company in China to launch full inorganic package UV LED which is based on CMH(Ceramic,Metal,hard glass) technology platfrom.
We can provide CMH series (high reliability) and U/ D series (high cost performance) products, including UVA/UVB/UVC/VCSEL.
It covers curing, printing, (money) authentication, medical, disinfection/ sterilization and security industry.

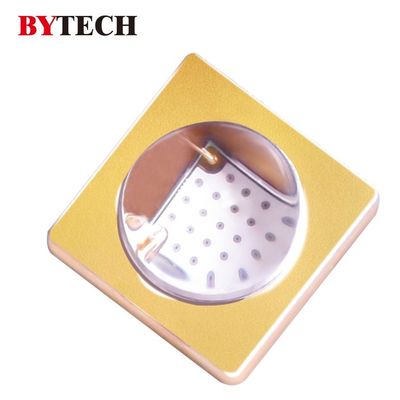

Characteristics of CMH235A4V105Z1V2 UV LED
1. Electrical / Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units |
CMH235A4V105Z1V2 (IF=700mA) |
| Peak Wavelength | λp | nm | 360-370 |
| Radiant Flux | Φe | mW | 800-1400 |
| Forward Voltage | VF | V | 3.4-4.2 |
| Thermal Resistance | Rth | °C/W | 5.0 |
| Spectrum Half Width | Δλ | nm | 13 |
| View Angle | 2θ1/2 | deg | 60 |
2. Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units | CMH235A4V105Z1V2 |
| DC Forward Current | IFmax | mA | 700 |
| Maximum Rating Junction Temperature | Tjmax | °C | 125 |
| Operating Temperature Range | Topr | °C | -10 ~ +65 |
| Storage Temperature Range | Tstg | °C | -40 ~ +85 |
Explain for CMH235A4V105Z1V2 :
* CMH: package technology
* 2:radiation angle,60degree
* 35: package size,3.5mm*3.5mm
* A4: peak wavelength,360~370nm
* V105: LED chip code, vertical chip
* Z1: Zener chip code
* V2:Version of the UV LED
Packaging:
Application in:
Production Line:
