Product Details:
|
| Material: | Metal, Ceramic, Quartz Glass Lens | Dimension: | 3.75mm*3.75mm*1.47mm |
|---|---|---|---|
| Peak Wavelength: | 360nm~370nm | Package Size: | 3.5mm*3.5mm |
| Protection: | Superior ESD | Lifespan Hours: | >20000 Hours |
| Radiation Angle: | 120 Degree | Use In: | Fluorescence Spectrum Analysis |
| High Light: | UV 365nm LED,led chip 3535,LED 405nm |
||

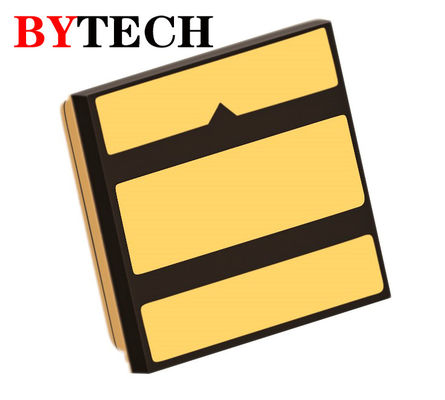

365nm 3535 UV LED 385nm 395nm 405nm uv led for fluorescence spectrum analysis
Introduction:
Bytech is the first company in China to launch full inorganic package UV LED which is based on CMH(Ceramic,Metal,hard glass)technology platfrom, and we has applied for 15 patents since 2013 inculding 13 authorized patents.At present,Our UV LED product cover wavelengths of UVA, UVB and UVC, which has been applied for offset printing, screen printing, ink-jet printing, intaglio printing, UV exposure, air purification, sterilization, 3D printing and other industries. And we provide our clients with one-stop-shopping service, any UV LED module do you want, we can customize for you.
Characteristics of U535A4V133Z1
1,Electrical / Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units |
U535A4V133Z1 (IF=1000mA) |
| Peak Wavelength | λp | nm | 360-370 |
| Radiant Flux | Φe | mW | 1400-1800 |
| Forward Voltage | VF | V | 3.5-4.5 |
| Thermal Resistance | Rth | °C/W | 5.0 |
| Spectrum Half Width | Δλ | nm | 9 |
| View Angle | 2θ1/2 | deg | 120 |
2,Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units |
U535A4V133Z1 |
| DC Forward Current | IFmax | mA | 1000 |
| Maximum Rating Junction Temperature | Tjmax | °C | 115 |
| Operating Temperature Range | Topr | °C | -20 ~ +65 |
| Storage Temperature Range | Tstg | °C | -40 ~ +85 |
Explain for U535A4V133Z1
*U: Packaging technology,silicone dispensing
*5: radiation angle,120°;
*35: package size,3.5mm*3.5mm;
*A4: peak wavelength,360~370nm;
*V133: LED chip code, vertical chip;
*Z1: Zener chip code.
Package Dimensions (Unit: mm)
Packaging:
Production Line
