Product Details:
|
| Viewing Angle: | 120 Degree | Product Dimension: | 28*42*5.3mm |
|---|---|---|---|
| Peak Wavelength: | 400nm-410nm | Power: | 15-18w |
| Working Hours: | >20000 Hours | Dimension Of Copper Substrate: | 26.8mm * 28mm |
| Use In: | 3D Printer | LED Chips: | Luminus |
| High Light: | Curing UVA LEDS,Lithography UVA LEDS,UV LED 385nm |
||

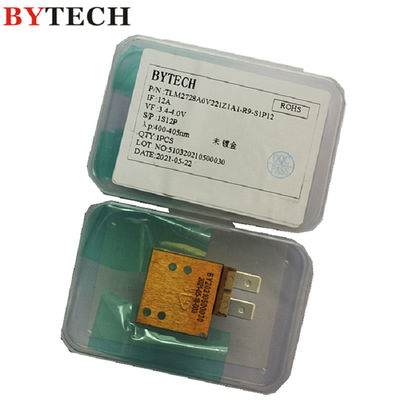

BYTECH 365nm 385nm 405nm UVA LEDS for curing UV led module for lithography
Company Introduction:
BYTECH Electronics CO., Ltd, Chinese national high and new tech enterprise.
It is the first company in China to produce and sale the full inorganic UV LEDs, and to provide application solutions for customer.
CMH packaging technology platform is a kind of packaging technology which adopts ceramic, metal, hard glass as packaging materials, and it is independent intellectual property owned by BYTECH.
By now, BYTECH can provide CMH series (high reliability) and U/ D series (high cost performance) products.
It covers curing, printing, (money) authentication, medical, disinfection/ sterilization and security industry.
Characteristics of TLM2728A08
* Electrical / Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units | Value) |
| Test current | I | A | 9.0 |
| Forward Voltage | VF | V | 3.3-4.0 |
| Peak Wavelength | λp | nm | 400~410 |
| Radiant Flux | Φe | W | 15-18 |
| Spectrum Half Width | Δλ | nm | 15-18 |
* Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units | Value |
| Maximum Rating Forward Current | IFmax | A | 24 |
| Maximum Rating Junction Temperature | Tjmax | °C | 125 |
| Operating Temperature Range | Topr | °C | -10 ~ +85 |
| Storage Temperature Range | Tstg | °C | -40 ~ +100 |
Package Dimensions (Unit: mm)
For Applications:
* 3D Printing
* Curing
* Lithography
Product ID:
TLM2728A08
T:High thermal conductivity copper substrate；
L:Aluminum dam；
M:COB Module；
2728:Dimension of copper substrate 26.8*28mm；
A03:Chip peak wavelength code:400~410nm；
Production Line
FAQ
Q1: Are you a factory or dealer?
A1: We are a real and professional manufacturer in UV LED.
Q2: What products do you main business?
A2: We are Specialized in full inorganic package UV LED and UV LED module.
Q3: How about your quality?
A3: Use top quality material to make sure stable quality. Every product passed aging test well then delivery to every client.
Q4: Can you offer customized design and manufacturing?
A4: Yes, we offer customized design and manufacturing. We offer free-of-charge PCB design and electrical and optical test. All our LED modules are customized designs for customers from all over the world.
Q5: How to make a customized LED module?
A5: Firstly, we need to confirm customer requirement through communication.
Secondly, we create the LED layout drawing and hole bitmap for confirmation
Thirdly, we make and test the sample board
Fourthly, we perform electronic and optical property parameters measurement
Fifthly, we go through reliability test.
Sixthly, we package and deliver the order package after getting Acceptance of Evaluation from Technical department.
