Product Details:
|
| Viewing Angle: | 120 Degree | Module OEM: | Provide |
|---|---|---|---|
| Peak Wavelength: | 400-410nm | Power: | 12W-15w |
| Voltage: | 3.3-4V | Operating Temperature Range: | -10～+8 5 |
| Storage Temperature Range: | - 4 0～+ 1 0 0 | LED Chips: | Luminus |
| High Light: | 12W UVA LEDS,15W UVA LEDS,UV LED 400nm |
||

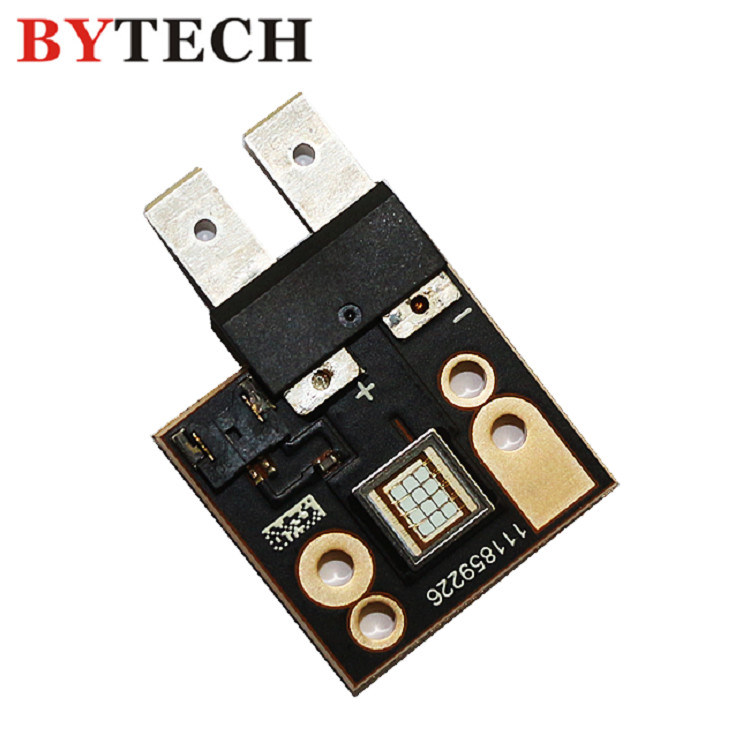

BYTECH TLM2728A08 12W to 15W 405nm UVA LEDS for lithography 405nm COB LED module
Company Introduction:
Bytech is the first company in China to launch full inorganic package UV LED which is based on CMH(Ceramic,Metal,hard glass)technology platfrom, and we has applied for 15 patents since 2013 inculding 13 authorized patents.
At present,Our UV LED product cover wavelengths of UVA, UVB and UVC, which has been applied for offset printing, screen printing, ink-jet printing, intaglio printing, UV exposure, air purification, sterilization, 3D printing and other industries. And we provide our clients with one-stop-shopping service, any UV LED module do you want, we can customize for you.
Characteristics of TLM2728A08
1, Electrical / Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units | Value) |
| Test current | I | A | 9.0 |
| Forward Voltage | VF | V | 3.3-4.0 |
| Peak Wavelength | λp | nm | 400~410 |
| Radiant Flux | Φe | W | 12-15 |
| Spectrum Half Width | Δλ | nm | 15-18 |
2, Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units | Value |
| Maximum Rating Forward Current | IFmax | A | 24 |
| Maximum Rating Junction Temperature | Tjmax | °C | 125 |
| Operating Temperature Range | Topr | °C | -10 ~ +85 |
| Storage Temperature Range | Tstg | °C | -40 ~ +100 |
Package Dimensions (Unit: mm)
Product ID: TLM2728A08
T: High thermal conductivity copper substrate；
L: Aluminum dam；
M: COB Module；
2728: Dimension of copper substrate 26.8*28mm；
A08: Chip peak wavelength code: 400~410nm；
Packge
Why You Choose Bytech
1, Partners in the Workplace, A list of outstanding organizations we have teamed with to help building a successful quality controlling program.
2, Our UV LED are sold to reseller professionals in over 50 countries worldwide for years.
3, All of our UV LED made fresh within one month of your order, and has a two year warranty.
4, UV LED in the China in accordance to strict industry regulations.
5, All UV LED are subject to continuous laboratory quality testing.
6, We offer top quality light fixtures for prices well below the market standard.
