Product Details:
|
| Radiation Angle: | 45 Degree | LED Dimension: | 3.70*3.70*2.67mm |
|---|---|---|---|
| Peak Wavelength: | 410-420nm | Radiant Flux: | 1200-1600mW |
| Thermal Resistance: | 5.0 °C/W | Use In: | Printing |
| Forward Current: | 1200 MA | Package Size: | 3.5*3.5 Mm |
| High Light: | Inorganic 3535 UV LED,Printing 3535 UV LED,410nm LED |
||

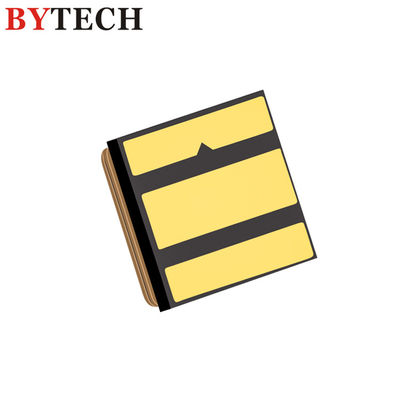

BYTECH Full Inorganic package 410nm 415nm 420nm 3535 UV LED for printing
Company Introduction:
BYTECH Electronics CO., Ltd, Chinese national high and new tech enterprise.
It is the first company in China to produce and sale the full inorganic UV LEDs, and to provide application solutions for customer.
CMH packaging technology platform is a kind of packaging technology which adopts ceramic, metal, hard glass as packaging materials, and it is independent intellectual property owned by BYTECH.
By now, BYTECH can provide CMH series (high reliability) and U/ D series (high cost performance) products.
It covers curing, printing, (money) authentication, medical, disinfection/ sterilization and security industry.
Characteristics of CMH235AAV123Z1
1, Electrical / Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units | Value |
| Peak Wavelength | λp | nm | 410-420 |
| Radiant Flux | Φe | mW | 1200~1600 |
| Forward Voltage | VF | V | 3.4~4.2 |
| Thermal Resistance | Rth | °C/W | 5.0 |
| Spectrum Half Width | Δλ | nm | 18 |
| View Angle | 2θ1/2 | deg | 45 |
2, Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units | Value |
| DC Forward Current | IFmax | mA | 1200 |
| Maximum Rating Junction Temperature | Tjmax | °C | 125 |
| Operating Temperature Range | Topr | °C | -40 ~ +85 |
| Storage Temperature Range | Tstg | °C | -40 ~ +100 |
Package Dimensions & Circuit
(Unit: mm):
Ranks (IF=1000mA, Ta=25℃, RH=40%)
Applications
˗ Fluorescent spectroscopy
˗ Sensors and monitors
˗ Bio-analysis/detection
˗ Phototherapy
˗ UV curing
˗ Printing
˗ Coating
Production Line
FAQ
Q1: Are you a factory or dealer?
A1: We are a real and professional manufacturer in UV LED.
Q2: What products do you main business?
A2: We are Specialized in full inorganic package UV LED and UV LED module.
Q3: How about your quality?
A3: Use top quality material to make sure stable quality. Every product passed aging test well then delivery to every client.
Q4: Can you offer customized design and manufacturing?
A4: Yes, we offer customized design and manufacturing. We offer free-of-charge PCB design and electrical and optical test. All our LED modules are customized designs for customers from all over the world.
Q5: How to make a customized LED module?
A5: Firstly, we need to confirm customer requirement through communication.
Secondly, we create the LED layout drawing and hole bitmap for confirmation
Thirdly, we make and test the sample board
Fourthly, we perform electronic and optical property parameters measurement
Fifthly, we go through reliability test.
Sixthly, we package and deliver the order package after getting Acceptance of Evaluation from Technical department.
