Product Details:
|
| Working Time: | >20000 Hours | Forward Current: | 100mA |
|---|---|---|---|
| Peak Wavelength: | 300nm-310nm | Chip: | Flip Chip |
| Use In: | Skin Therapy | Radiation Angle,: | 120 Degree |
| Forward Voltage: | 5-9V | Junction Temperature: | 120℃ |
| High Light: | Skin Therapy 3535 UV LED,305nm 3535 UV LED,310nm UVB LED |
||

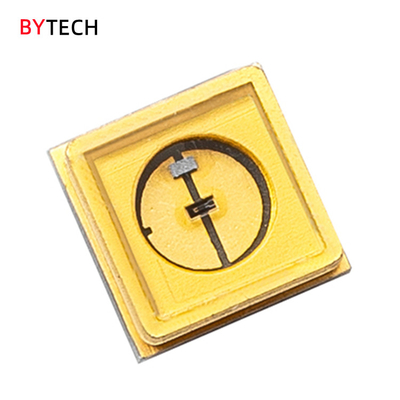

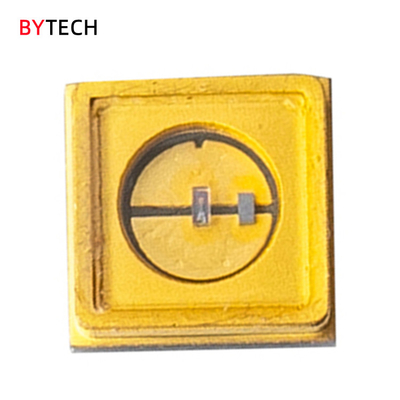

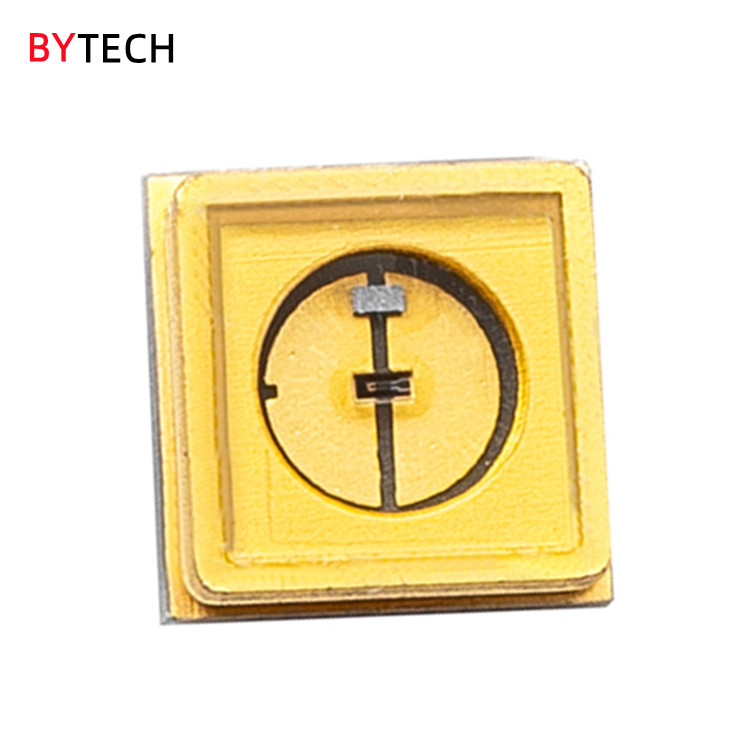

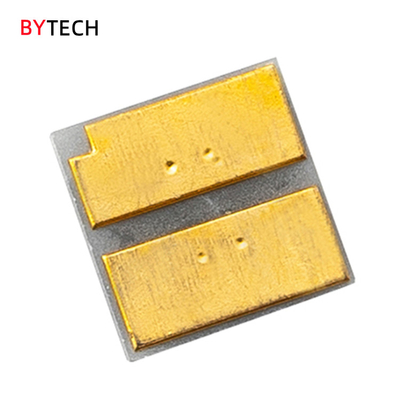

BYTECH 305nm 310nm UVB LED 300nm to 310nm 3535 UV LED for Skin therapy
Company Introduction:
BYTECH Electronics CO., Ltd, Chinese national high and new tech enterprise.
It is the first company in China to produce and sale the full inorganic UV LEDs, and to provide application solutions for customer.
CMH packaging technology platform is a kind of packaging technology which adopts ceramic, metal, hard glass as packaging materials, and it is independent intellectual property owned by BYTECH.
By now, BYTECH can provide CMH series (high reliability) and U/ D series (high cost performance) products.
It covers curing, printing, (money) authentication, medical, disinfection/ sterilization and security industry.
Characteristics of UVB LED
* Electrical / Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units |
F49 (Continuous current IF=80mA) |
F49 (Intermittent current IF=100mA) |
| Peak Wavelength | λp | nm | 300~310 | 300~310 |
| Radiant Flux | Φe | mW | 4~10 | 6~12 |
| Forward Voltage | VF | V | 5~9 | 5~9 |
| Thermal Resistance | Rth | °C/W | ≦20 | ≦20 |
| Spectrum Half Width | Δλ | nm | 11.5 | 11.6 |
| View Angle | 2θ1/2 | deg | 120 | 120 |
* Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units | F49 |
| DC Forward Current | IFmax | mA | 100 |
| Maximum Rating Junction Temperature | Tjmax | °C | 120 |
| Operating Temperature Range | Topr | °C | -10 ~ +85 |
| Storage Temperature Range | Tstg | °C | -40 ~ +100 |
Applications
● Currency Detector
● Criminal inspection
● Skin therapy
● Biological Technology
Package Dimensions and Circuit
(Unit: mm)
Characteristics Diagrams
Product Application Information
