Product Details:
|
| Working Time: | >20000 Hours | Package Size: | 3.5mm*3.5mm |
|---|---|---|---|
| Peak Wavelength: | 300nm-310nm | Sample: | Free |
| Use In: | Skin Phototherapy | Radiation Angle,: | 60° |
| Forward Voltage: | 5-9V | Radiant Flux: | 6-12mW |
| High Light: | 9V UVB LEDS,60 Degree UVB LEDS,UV LED 300nm |
||

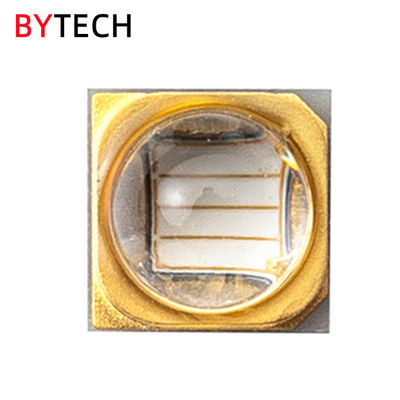

BYTECH U335B2F110Z4 60 degree 300nm 305nm 310nm UVB LEDS for Skin phototherapy
Company Introduction:
Bytech is the first company in China to launch full inorganic package UV LED, and CMH (Ceramic,Metal,hard glass) technology is a independent intellectual property owned by BYTECH.
At present,Our UV LED product cover wavelengths of UVA, UVB and UVC, which has been applied for offset printing, screen printing, ink-jet printing, intaglio printing, UV exposure, air purification, sterilization, 3D printing and other industries.
Characteristics of UVB LED
1. Electrical / Optical Characteristics (Ta=25℃, RH=40%)
| Parameter | Symbol | Units |
Value (Continuous current IF=80mA) |
Value (Intermittent cur[1]rent IF=100mA) |
| Peak Wavelength | λp | nm | 300-310 | 300-310 |
| Radiant Flux | Φe | mW | 4~10 | 6~12 |
| Forward Voltage | VF | V | 5~9 | 5~9 |
| Thermal Resistance | Rth | °C/W | ≦20 | ≦20 |
| Spectrum Half Width | Δλ | nm | 10.5 | 10.6 |
| View Angle | 2θ1/2 | deg | 60 | 60 |
2. Absolute Maximum Ratings (Ta=25°C, RH=40%)
| Parameter | Symbol | Units | Value |
| Maximum Rating Forward Current | IFmax | mA | 100 |
| Maximum Rating Junction Temperature | Tjmax | °C | 120 |
| Operating Temperature Range | Topr | °C | -10 ~ +85 |
| Storage Temperature Range | Tstg | °C | -40 ~ +100 |
Package Dimensions and Circuit
(Unit: mm)
Characteristics Diagrams
Product Application Information
Production Line
